Depending on your application, a number of holemaking tools may give you consistent and precise results. For some jobs, a multi-task tool or holemaking mill may do the trick, while others require a high-performance indexable bit or tap. Regardless of your business objectives, AG Carbide continues to service our customers in offering hole-making solutions using tough and durable tungsten carbide-based materials.
At AG Carbide, we have an extensive selection of state-of-the-art inserts, bits and tools for making accurate and clean holes of any diameter. These include modular and solid carbide drills, counterboring tools, hole finishers, indexable inserts and combination tools. We also offer improvement strategies and testing to help you enhance the quality of your product.

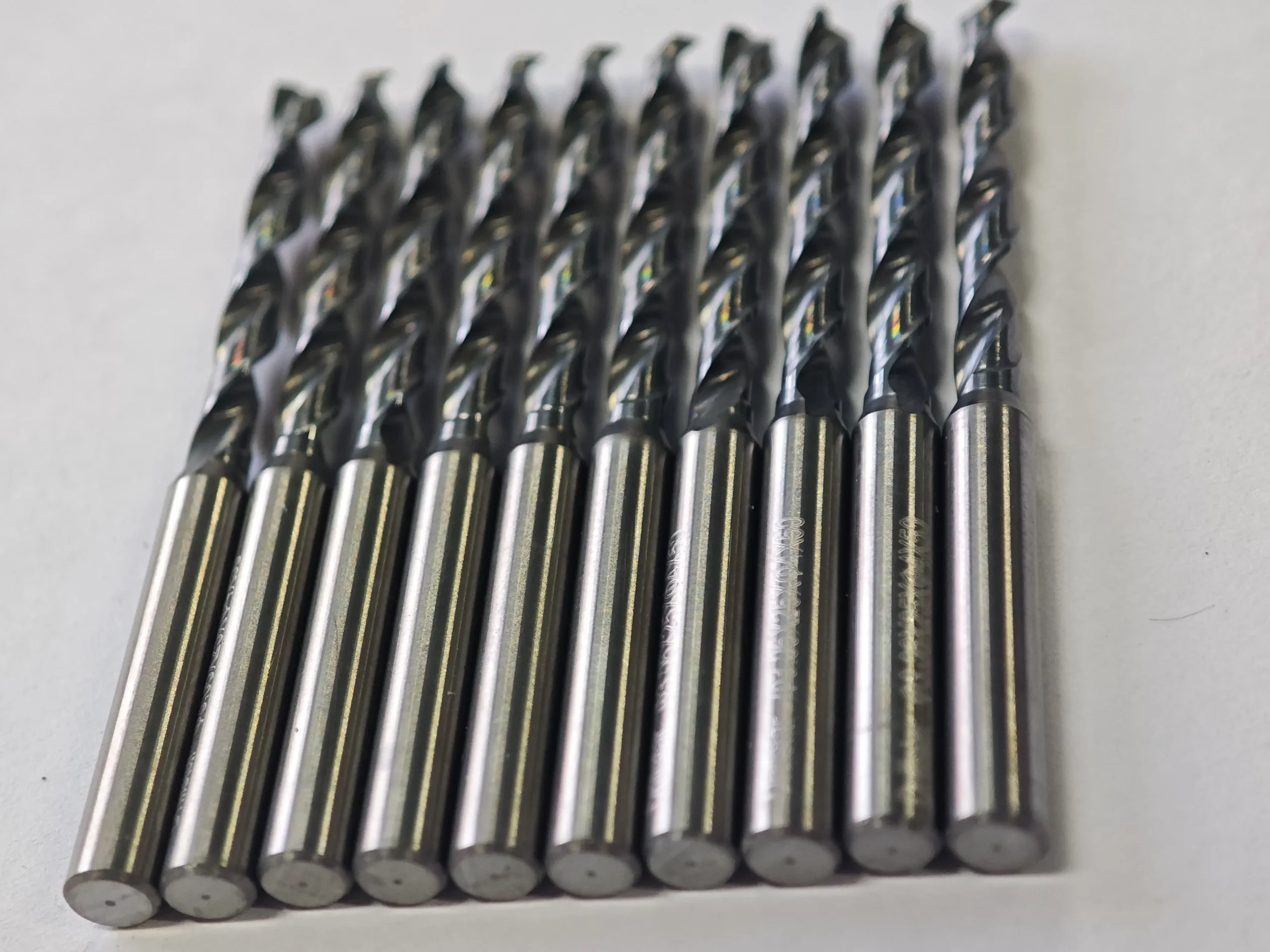

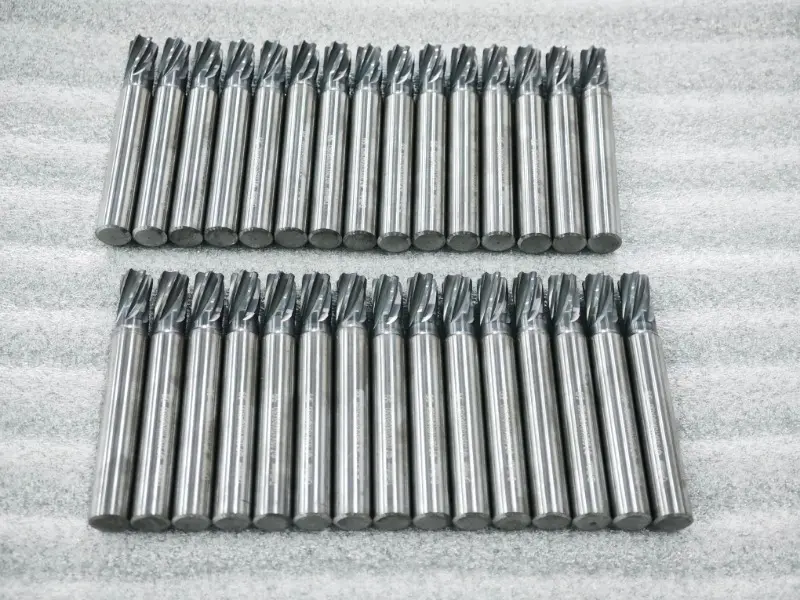

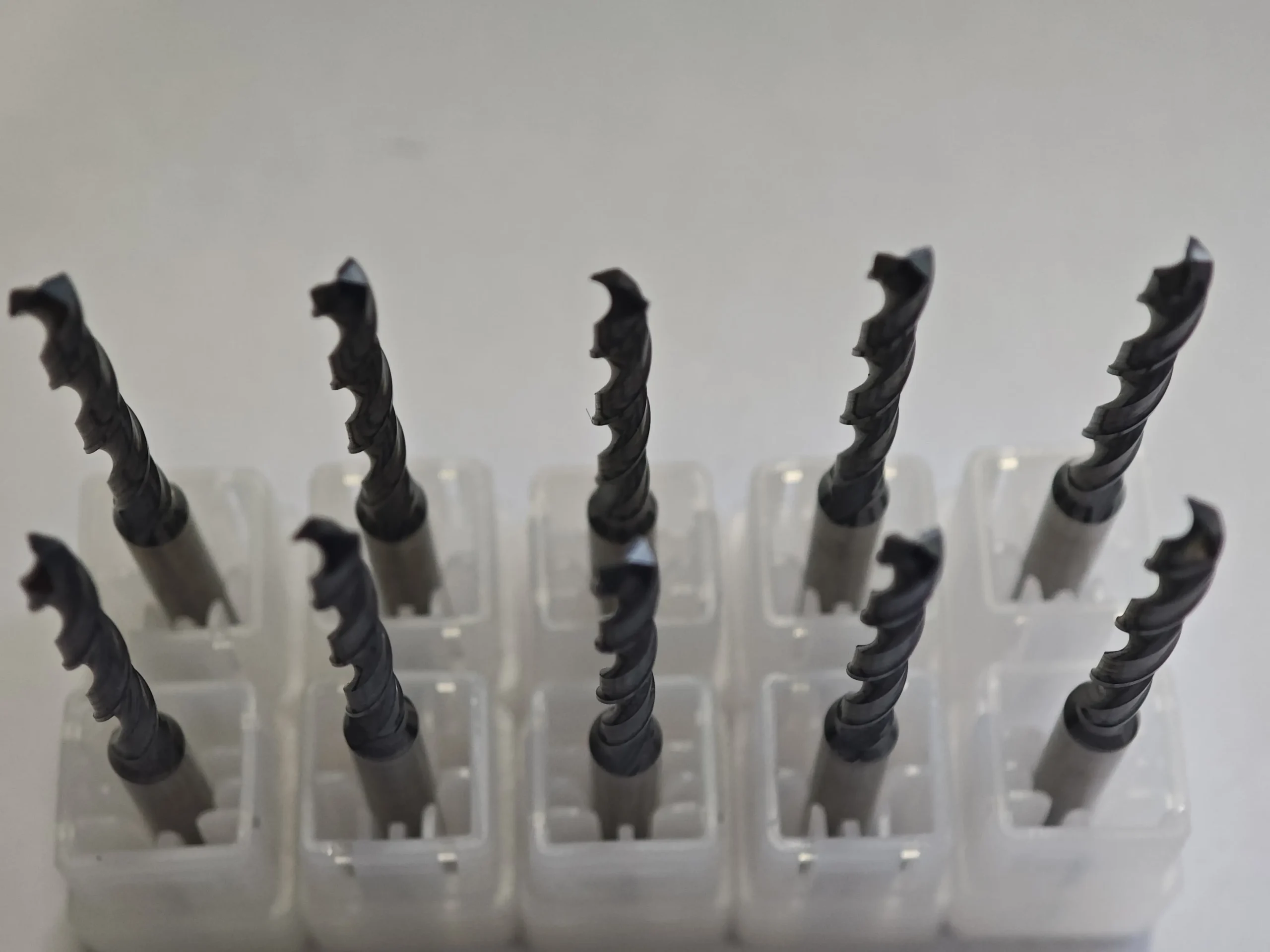

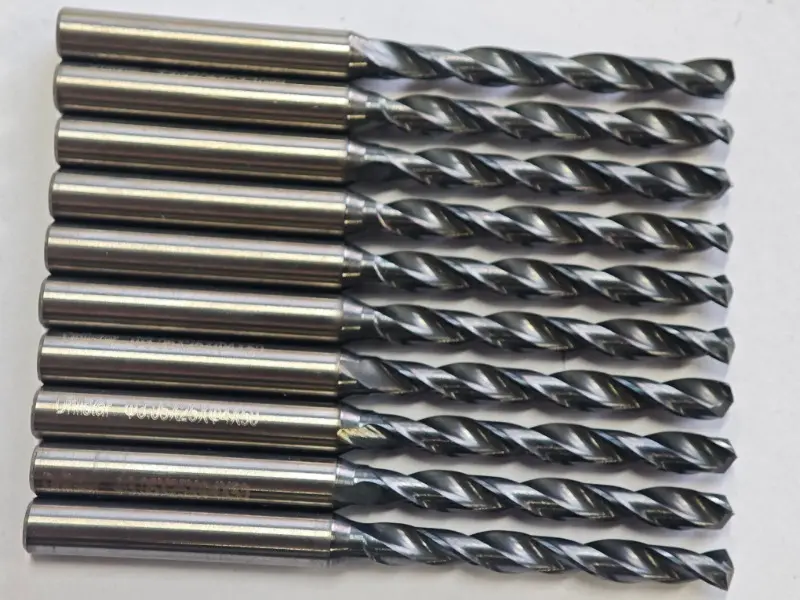

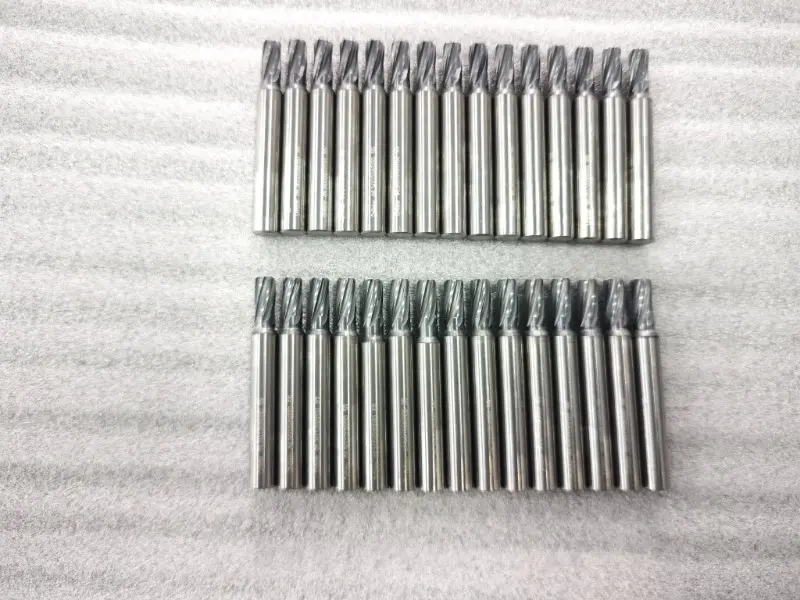

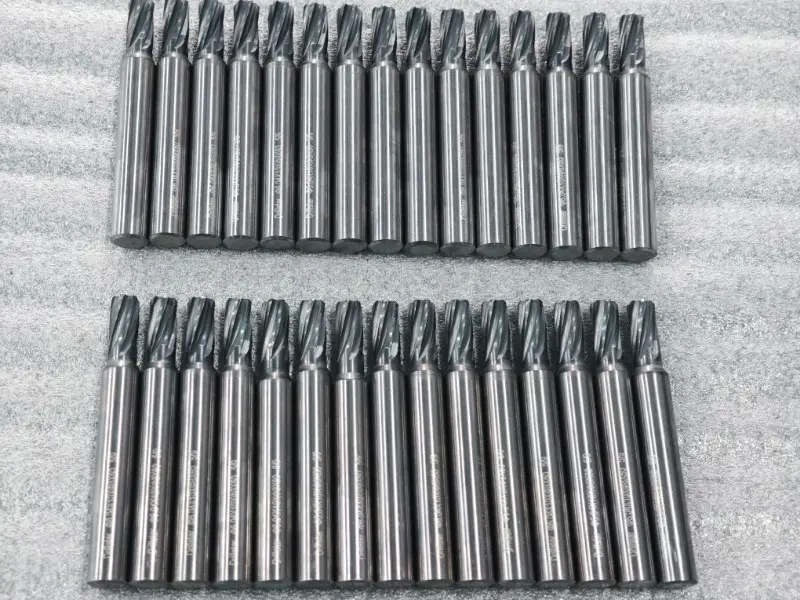

The Carbide drill bit is a hole-drilling tool made from tungsten carbide material. They provide the best combination of penetration rate and precision. It can be used in drilling holes out of all kinds of metal materials like steel, aluminum, and bronze along with other non-metal materials like wood, concrete, masonry, tile, and more.
We manufacture and stock carbide drills for different applications. Our standard ones are 3D and 5D carbide drills for general purposes with bronze coating. The drill bits’ substrate material, geometry, and coating can determine their drilling performance in certain materials. And we can manufacture as per your requirements.
Drilling is a basic method of hole machining. Drilling is often performed on a drilling machine and a lathe, and it can also be performed on a boring machine or a milling machine. Commonly used drilling machines include bench drilling machines, vertical drilling machines, and radial drilling machines.
The drilling motion constitutes: The rotary motion of the drill bit is the main cutting motion, and the machining accuracy is low.
The process of drilling a hole in a solid material with a bit is called drilling. Drilling is one of the basic methods of hole machining. Drilling is usually performed on a drilling machine or a lathe or on a boring machine or a milling machine.
Drilling machines are the main machine tool for hole machining. Drilling is mainly performed on a drill press using a drill (twist drill). When drilling on a lathe, the workpiece rotates and the tool makes a feed motion. While processing on the drilling machine, the workpiece does not move, the tool performs the main rotation motion, and moves along the axial direction to perform the feed movement.
Drilling machines are therefore suitable for the machining of holes in workpieces that do not have a symmetrical axis of rotation, especially in porous machining, such as machining of holes in parts such as cabinets and racks. In addition to borehole drilling machine can also complete the hole reaming, reaming, boring plane, tapping and other work.
The internal coolant carbide drill is always preferred to avoid chip jamming when drilling deeper holes (4-5 × DC),especially in long chipping materials.
Our carbide drill bits are for industrial use in materials such as aluminum, steel, nonferrous heavy metal, and stainless steel. Carbide drill bits maintain a sharp cutting edge longer than HSS or Cobalt and are run at higher speed rates as they absorb heat more efficiently.
We supply both solid and coolant through carbide drills in a wide range of sizes. Our coolant drills are standard with AlTiN coating to perform a higher cost per drilled hole.
Dr-ap3 (3*d)，ap5 (5*d)，ap8 (8*d)， integral carbide drill with and without internal cooling through hole, according to din6537 standard
