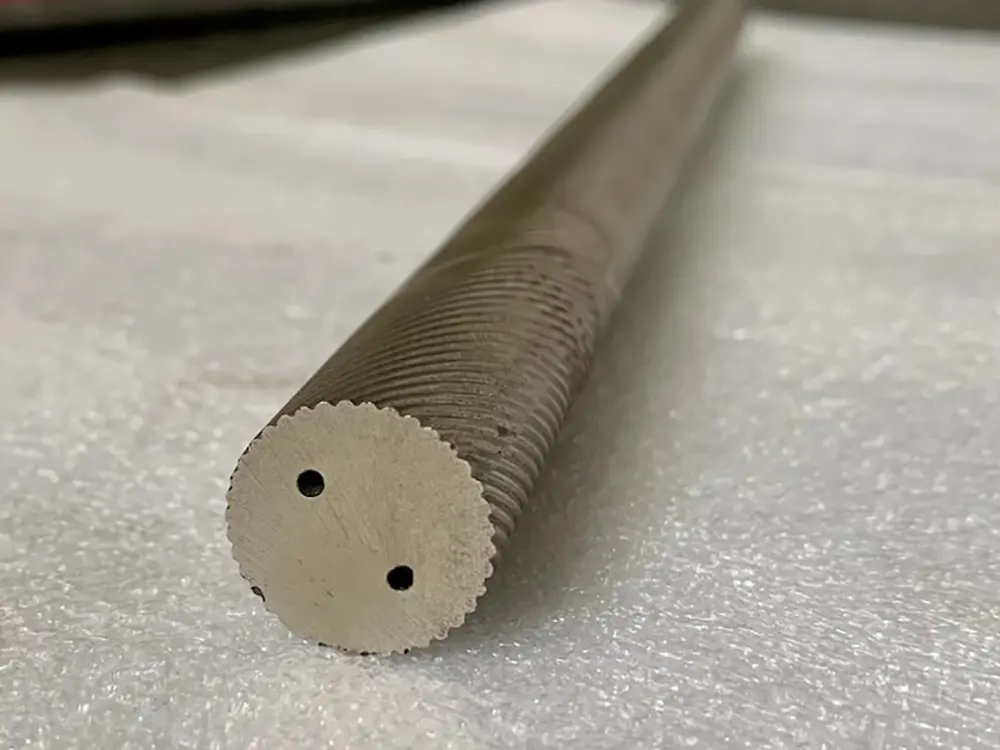

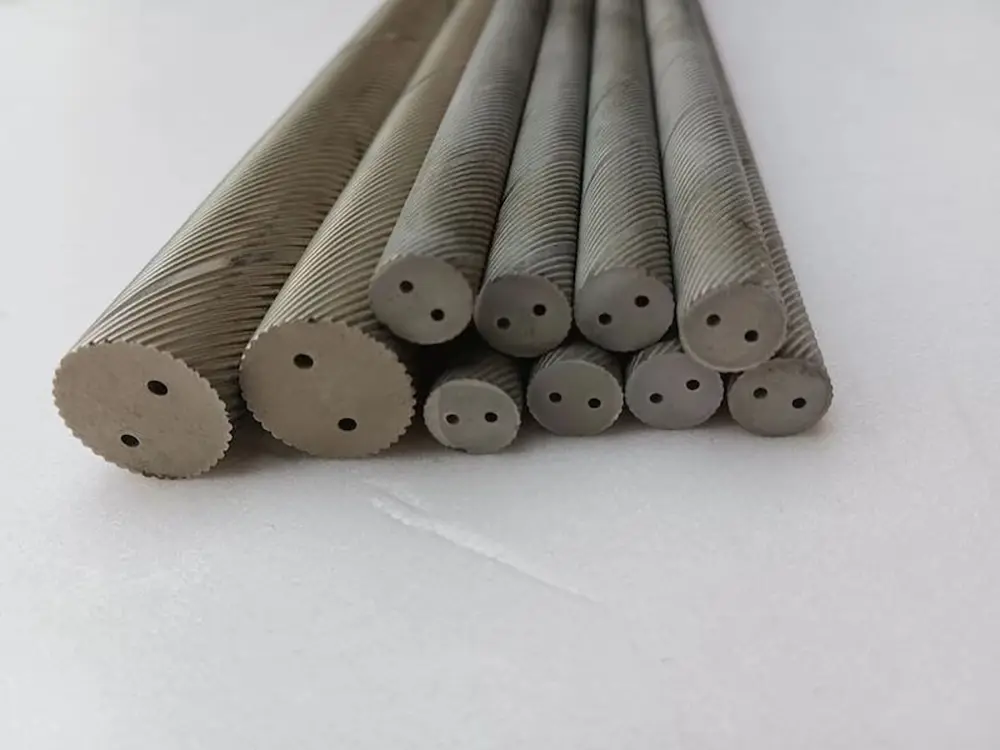

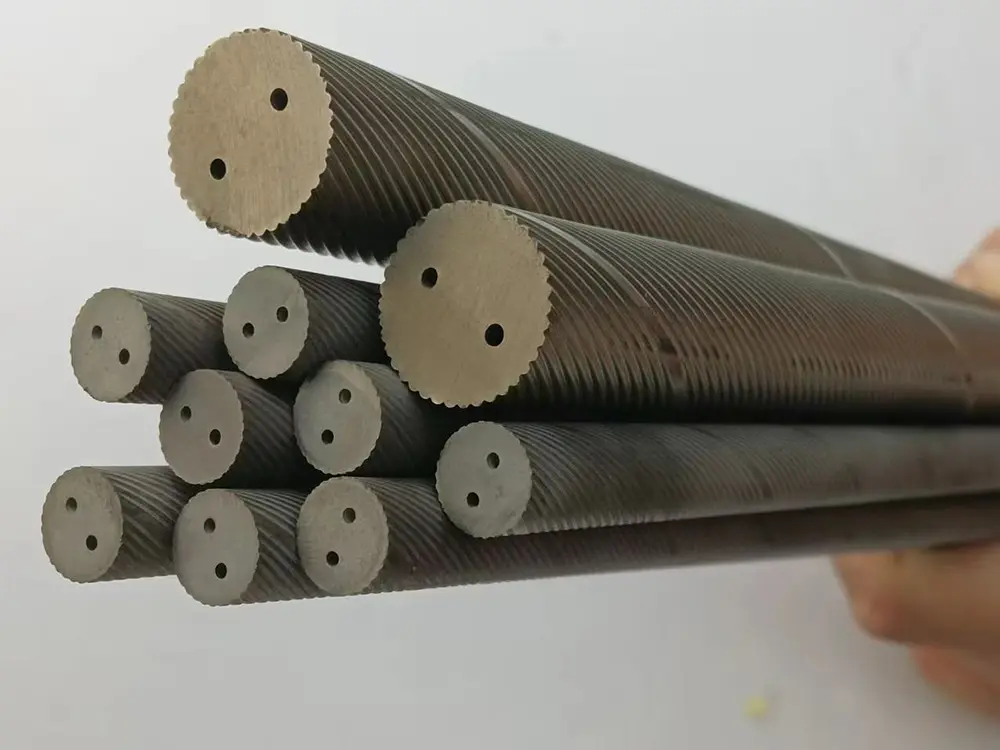

Threaded carbide rod with holes are mainly used for processing tungsten parts or as a tool bit of processing lathe, conductors, steel-making burdening and additives.
Choosing AGrade Carbide for your coolant rods means:
| type | dimension | grade | |||||||
| Outside Diameter:mm | Hole diameter mm | T mm | Pitch(mm) | ||||||
| ØD(mm) | Tol.(mm) | Ød(mm) | Tol.(mm) | T(mm) | Tol.(mm) | Pitch(mm) | Tol.(mm) | AS10 | |
| Ø6*330 | 6.0 | +0.60~+1.00 | 0.70 | ±0.10 | 2.60 | -0.4 | 32.70 | ±0.85 | ◎ |
| Ø8*330 | 8.0 | +0.70~+1.10 | 1.00 | ±0.15 | 4.00 | -0.4 | 43.53 | ±1.05 | ◎ |
| Ø10*330 | 10.0 | +0.70~+1.10 | 1.40 | ±0.15 | 4.80 | -0.6 | 54.41 | ±1.25 | ◎ |
| Ø12*330 | 12.0 | +0.70~+1.10 | 1.40 | ±0.15 | 6.25 | -0.6 | 65.30 | ±1.45 | ◎ |
| Ø14*330 | 14.0 | +0.70~+1.10 | 1.75 | ±0.20 | 7.10 | -0.8 | 76.18 | ±1.65 | ◎ |
| Ø15*330 | 15.0 | +0.70~+1.10 | 1.75 | ±0.20 | 7.70 | -0.8 | 81.62 | ±1.75 | ◎ |
| Ø16*330 | 16.0 | +0.70~+1.10 | 1.75 | ±0.20 | 8.30 | -0.8 | 87.06 | ±1.85 | ◎ |
| Ø18*330 | 18.0 | +0.70~+1.10 | 2.00 | ±0.25 | 9.55 | -0.8 | 97.95 | ±2.15 | ◎ |
| Ø20*330 | 20.0 | +0.70~+1.10 | 2.50 | ±0.25 | 10.40 | -1.0 | 108.83 | ±2.45 | ◎ |
Other types would be offered by customers’ requirements
