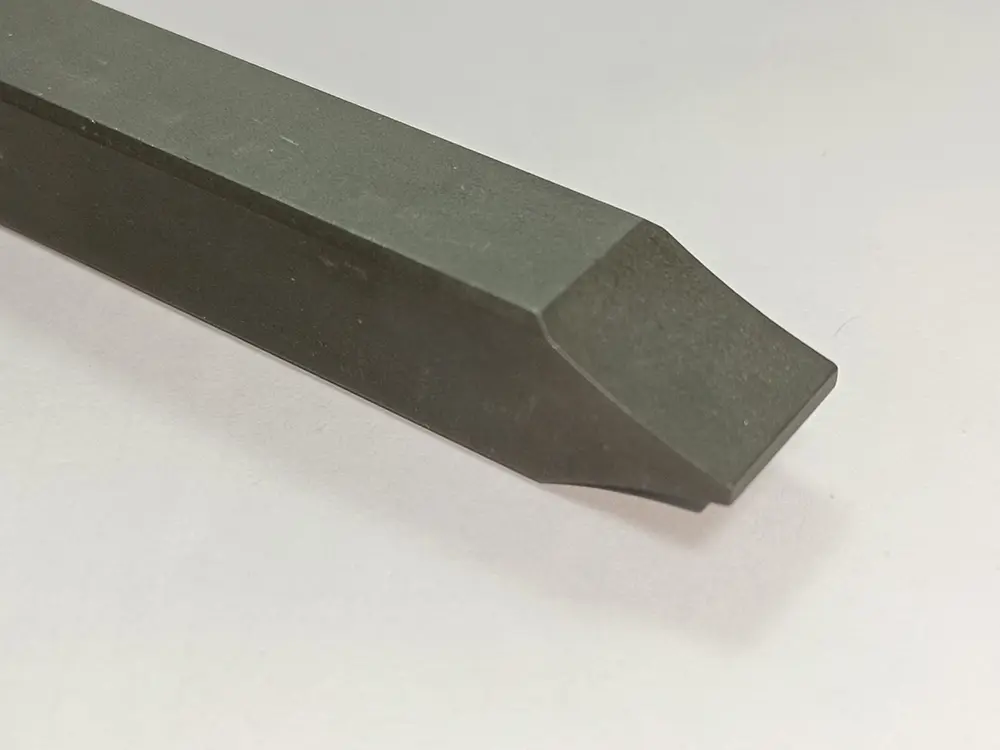

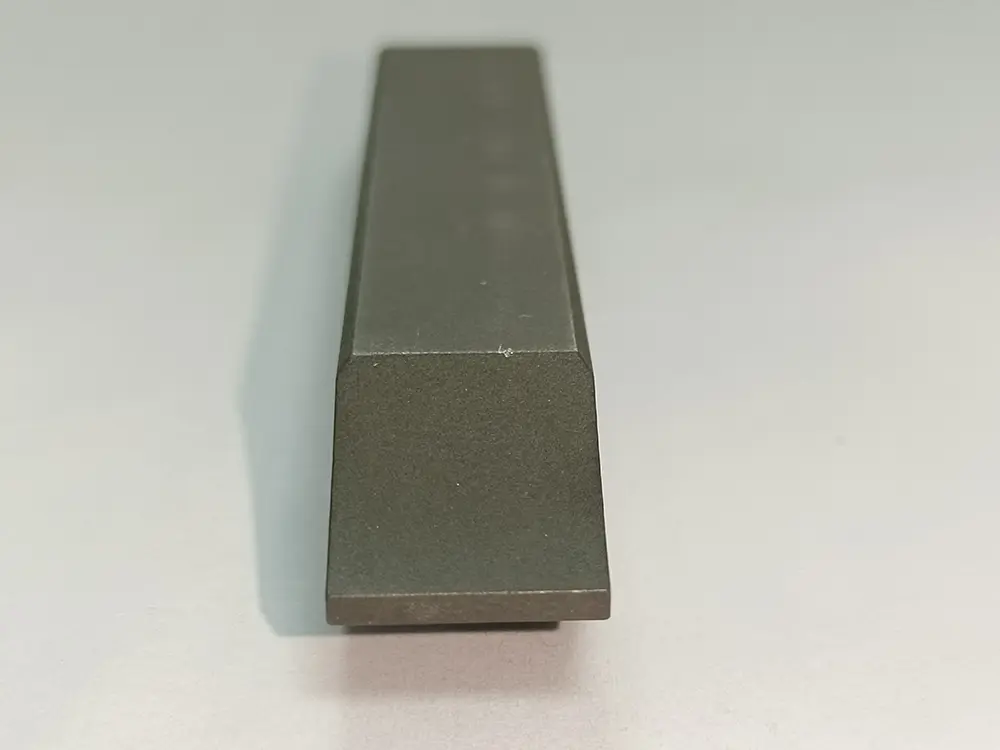

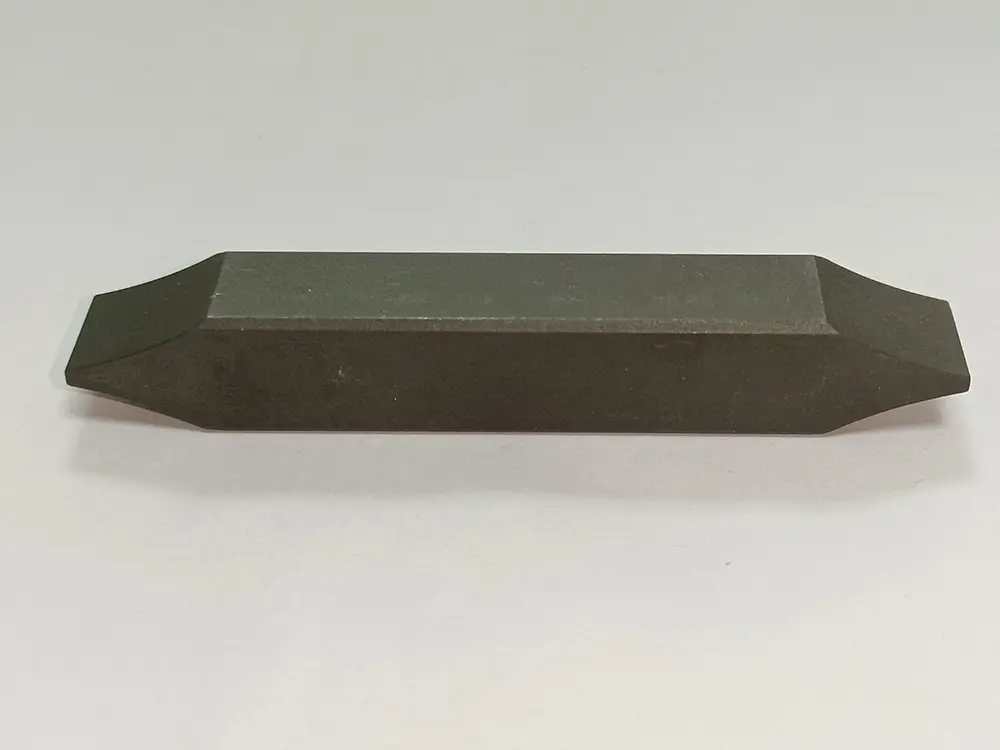

The CD Texture Cutter (Diamond Turning Tool) is a precision cutting tool made of high-quality diamond or cemented carbide substrate with diamond coating. It is mainly used to process uniform and high-gloss CD textures (concentric circular textures) on the surface of metal, composite materials and other workpieces. Widely applied in electronic equipment casings, decorative parts, precision mechanical components and other fields, it features high cutting precision, strong wear resistance and excellent processing surface quality.
| Parameter Item | Description |
| Base Material | Cemented Carbide (e.g., grades AS10, AU12, etc.) |
| Coating Type | Diamond Coating (PCD) |
| Cutting Edge Angle | 5°-30° (Customizable) |
| Cutter Head Diameter | 1-20mm (Customized according to processing requirements) |
| Hardness (HRA) | ≥91.9 |
| Transverse Rupture Strength | ≥5500N/mm² |
| Applicable Materials | Aluminum alloy, copper alloy, stainless steel, composite materials, etc. |
DIAMETERS FROM .0393” (1.0 MM) TO .4375” (11.1 MM) LENGTHS OF CUT FROM 5” (127 MM) – 14.17” (360MM)
The cemented carbide gun drill bit for the geology and mining field is the core component of the gun drill tool. It is made of high-strength and high-wear-resistant cemented carbide material. Suitable for deep hole drilling operations in geological and mining exploration, it can perform efficient drilling in hard geological bodies such as rocks and ores. It features high drilling precision, smooth chip removal and long service life, and is compatible with various geological drilling rigs.
Carbide cutting teeth refer to the tooth-like or tip components made from tungsten carbide, a composite material known for its exceptional hardness, wear resistance, and durability. These teeth are typically brazed or mounted onto various tools and machinery to serve as the primary cutting, drilling, or grinding surface.
Single axis CNC Deep Hole Gun Drilling Machine is used for processing automobiles, motorcycles, oil pump, nozzle, engineering machinery, mining machinery, military industry and other industries, small and medium-sized deep hole axial workpiece of special equipment.
Wear-Resistant Alloys are a class of materials specifically engineered to withstand surface degradation and material loss caused by mechanical wear. This wear can result from abrasion (scraping), erosion (impact by particles), adhesion (galling and seizing), and impact. Their primary function is to extend the service life of industrial equipment, reduce downtime, and improve operational efficiency in demanding environments.
Comma face grooving cutters (also known as comma grooving cutters or face comma cutters) are spec...
Our triple-blade end mills combine precision manufacturing (5-axis grinding) and premium materials (e.g., YG10X carbide) to deliver consistent performance in industrial production.
Rhombic CNC inserts are among the most widely used types of indexable inserts in CNC turning and boring processes. They are named for their rhombic shape (a quadrilateral with parallel opposite sides and fixed included angles between adjacent sides), and are primarily suitable for operations such as external turning, internal boring, and face turning.
The RFD6ZX1010-1000 six-axis drilling and milling compound deep hole drilling machine is mainly used for deep hole drilling and milling. Equipped with a high-precision CNC turntable (B-axis) and a sliding table rotation axis (A-axis), it can complete five-sided drilling and milling with one clamping. This expands the machine’s processing range, reduces clamping times, greatly improves processing accuracy and efficiency, and effectively saves production costs. It is mainly used for oblique hole processing in molds, mechanical parts, etc.
The carbide gun drill feather key is a precision-engineered guide & positioning component for carbide gun drills (deep-hole drilling tools). It ensures stable cutting, accurate hole alignment, and extended tool life during high-precision deep-hole machining. Made of premium tungsten carbide (WC-Co) with advanced coating technology, it delivers exceptional wear resistance and load-bearing capacity in harsh machining environments.
1.Equipment model: LK2120-5000 2. Rated tension: 150kN 3. Maximum stroke: 5000mm 4.Equipment use: The equipment is used to process variable lead and non-variable lead internal spirals, as well as linear grooves, and is suitable for processing products with equal wall thickness stators
Square CNC turning inserts are one of the commonly used cutting tools in CNC turning processes.
Carbide blocks, also known as tungsten carbide blocks or carbide blanks, are semi-finished, solid blocks of tungsten carbide that serve as raw materials or pre-forms for a wide range of industrial applications. They are prized for their exceptional hardness, wear resistance, and compressive strength, providing a durable base for creating critical wear parts and tools.

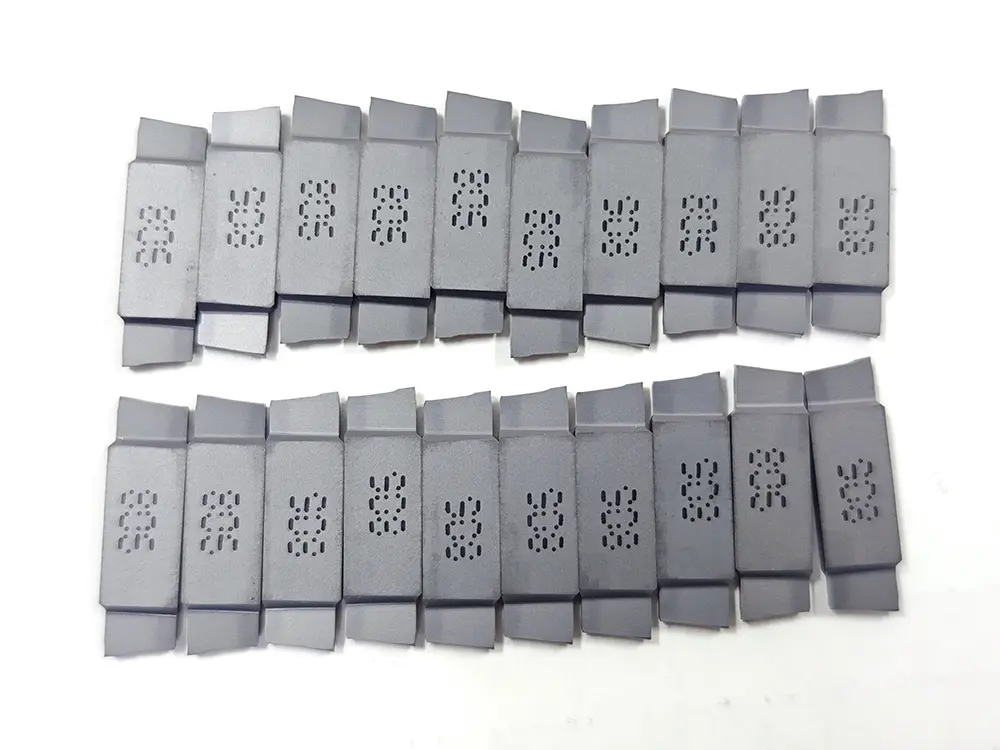

V-CUT knives (also known as V-shaped cutting knives or V-groove knives) are specialized tools for PCB (Printed Circuit Board) processing, metal sheet grooving, and V-groove machining of materials such as acrylic and plastic. Below is a detailed description from the perspectives of core characteristics, classification, parameters, and applications:
Large aperture deep hole drill i a deep hole machining machine that integrates BTA drill cutter drill,and gun dril,with a driling diameter of up to φ120mm. High efficient,high-precision,and high smoothness machining of large holes,with a smoothness of Ra0.4~0.8.
