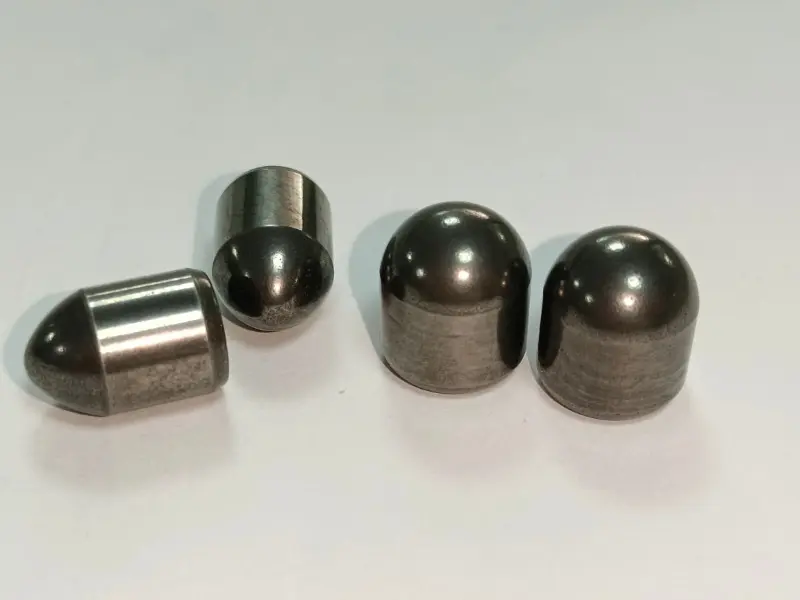

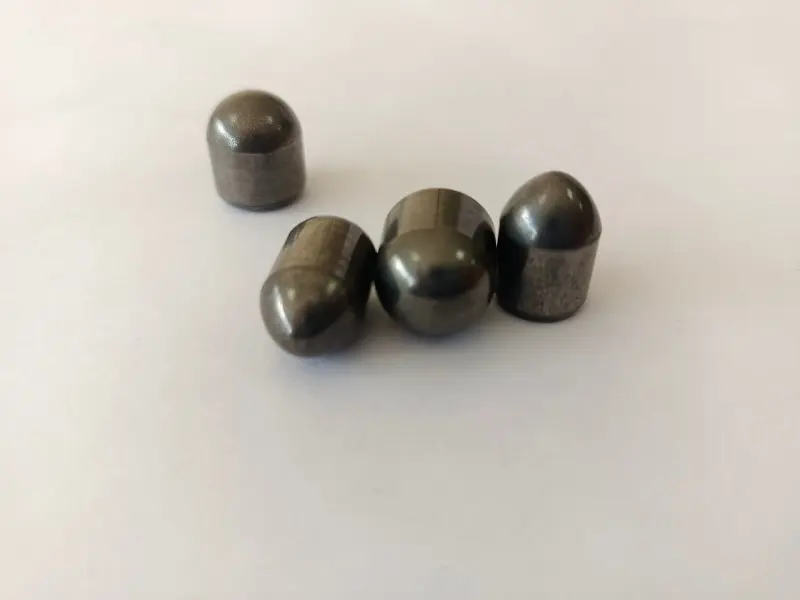

Cemented carbide ball tooth is a multi-functional cemented carbide cutting/crushing component with a spherical head. It has excellent impact toughness, wear resistance and cutting performance. Widely used in mining, tunnel excavation, building crushing and other fields, it is installed on drilling rigs, crushers, excavators and other equipment. It can efficiently crush hard materials such as rocks, ores and concrete, and is a key wearing part in the geology, mining and construction industries.
| Parameter Item | Description |
| Alloy Grades | AS10, AS15, AM15, AU12 |
| Cobalt Content (%w/w) | 10.0-15.0 |
| Density (g/cm³) | 13.9-14.4 |
| Hardness (HRA) | 90.3-92.2 |
| Ball Head Diameter (mm) | 4-30 |
| Shank Diameter (mm) | 3-25 |
| Total Length (mm) | 12-60 (Customizable) |
| Fracture Toughness (N/mm²·m¹/²) | 9.5-14.5 |
Solving the problem of long service life for core components, improving efficiency and profitability! Service areas: Screw motors, rotary steerable systems, downhole drilling tools, etc.
The lathes are suitable for machining various small and medium-sized steel parts. They can turn the inner holes, outer circles, end faces, cones and various threads – metric, imperial, module and diametral pitch threads – of various workpieces, and can also undertake drilling and boring functions.
Parameter ■This machine is portable, accurate, and durable, equipped witha diamond gr...
GD-600 Standard gun drill sharpening machine adopt precision rolling track, high-speed motor. The motion is smooth and the friction is small. Grinder can rotate in horizontal and vertical plane. Widely applicable to machine tools with sharpening Fixture canbe accurate and effective grinding a variety of gun drill.50Q Gun Drills Gun Drill Sharpening Fixture is specialized used in dedicated tooling the compact structure, of setup is reasonable and convenient, adjustment is simple, processing is time-saving(once setup to be completed by all angle grinding), the processing of drilling edge, high precision, good accuracy. Grinding range is φ 5-φ 32
This carbide gun drill, also known as a deep hole cutting insert drill, represents an advanced and efficient solution for deep hole machining. It integrates drilling, boring and reaming into a single operation, enabling high – precision hole processing in one pass. Crafted from premium carbide materials with specialized coating and structural design, it excels in handling harsh machining conditions while maintaining excellent stability and long service life, making it a core tool for precision manufacturing across multiple industries.
Coal Picks, also known as miner picks, conical picks, or rock picks, are essential cutting tools used in the mining and tunneling industries. They are specifically designed to fracture and excavate materials like coal, soft rock, and other minerals by being mounted on rotating drums of continuous miners, roadheaders, and shearers. Their primary function is to act as the point of attack, transferring the machine’s power into concentrated impact and shear force to break the material.
Carbide blocks, also known as tungsten carbide blocks or carbide blanks, are semi-finished, solid blocks of tungsten carbide that serve as raw materials or pre-forms for a wide range of industrial applications. They are prized for their exceptional hardness, wear resistance, and compressive strength, providing a durable base for creating critical wear parts and tools.
The cemented carbide gun drill bit for the geology and mining field is the core component of the gun drill tool. It is made of high-strength and high-wear-resistant cemented carbide material. Suitable for deep hole drilling operations in geological and mining exploration, it can perform efficient drilling in hard geological bodies such as rocks and ores. It features high drilling precision, smooth chip removal and long service life, and is compatible with various geological drilling rigs.
Comma face grooving cutters (also known as comma grooving cutters or face comma cutters) are spec...
DR series cutting tools are mainly used for processing cold drawn rubes, precision drawn rubes and cold rolled rubes-
Our Metal bond CBN/diamond honing stone has the advantage of longer life, higher efficiency and cost effective, can support Sunnen, Nissin, Nagel and Gehring honing machine, widely used in the auto parts (connecting rod, cylinder, fork, rocker arm), sewing parts, mould making, carbide tooling and compressor industry. We provide state of art quality and competitive price and look forward to cooperate with you.
• High quality Sandvick insert and pad • Dia 25mm—65mm,first choose of high efficiency. • Excellent straightness and surface finish.It can maintain good chip removal performance • during the processing of stainless steel and low carbon steel,to keep continuous production. • Easy to install and to use
Parameter Model×3 is a portable knife sharpener that can grind 2-blade,3-blade, and 4...
This machine tool is a special-purpose machine tool for machining cylindrical deep-hole parts. It is suitable for drilling and boring cylindrical deep-hole workpieces. During boring, an oil feeder is used to supply oil, and the chips are discharged to the chip hopper at the head of the machine through the cutting zone. During drilling, an internal chip removal method (BTA) is used, that is, an oil feeder supplies oil, and the chips are discharged from the inside of the drill rod to the chip hopper at the rear of the machine through the cutting zone.
The wear-resistant bushing is a versatile wear-resistant protective component made of high-quality cemented carbide material. It is widely used in machinery manufacturing, automation equipment, hydraulic systems and other fields to reduce friction and wear between moving parts and protect base parts. It has the characteristics of compact structure, easy installation, good wear resistance and long service life, and can be customized in size and material according to different working conditions.
