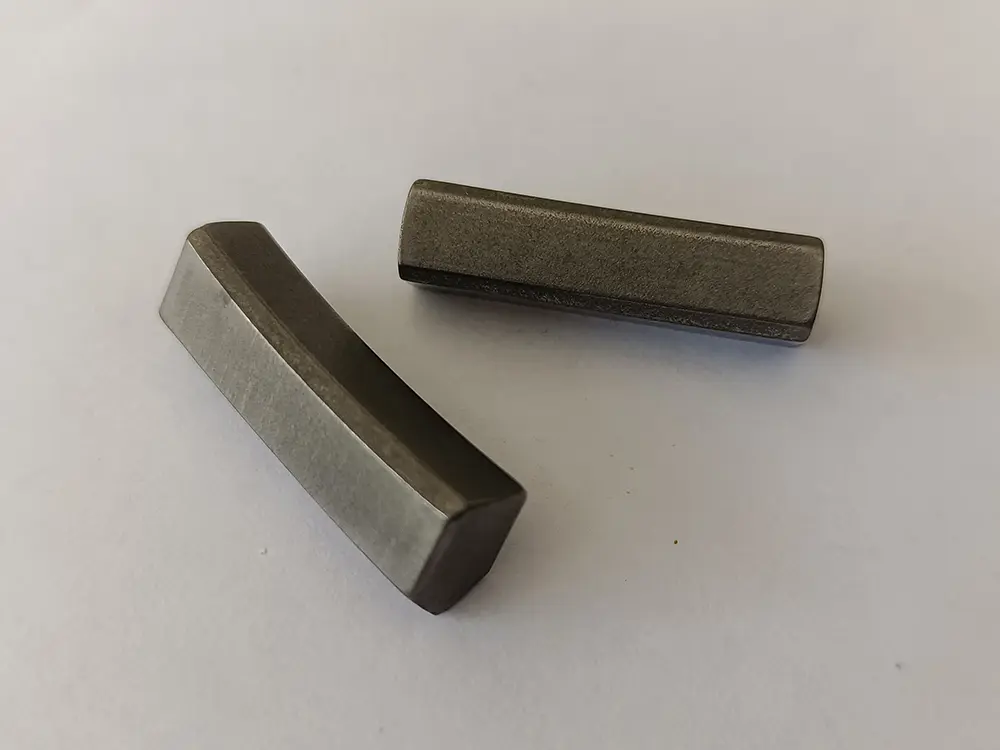

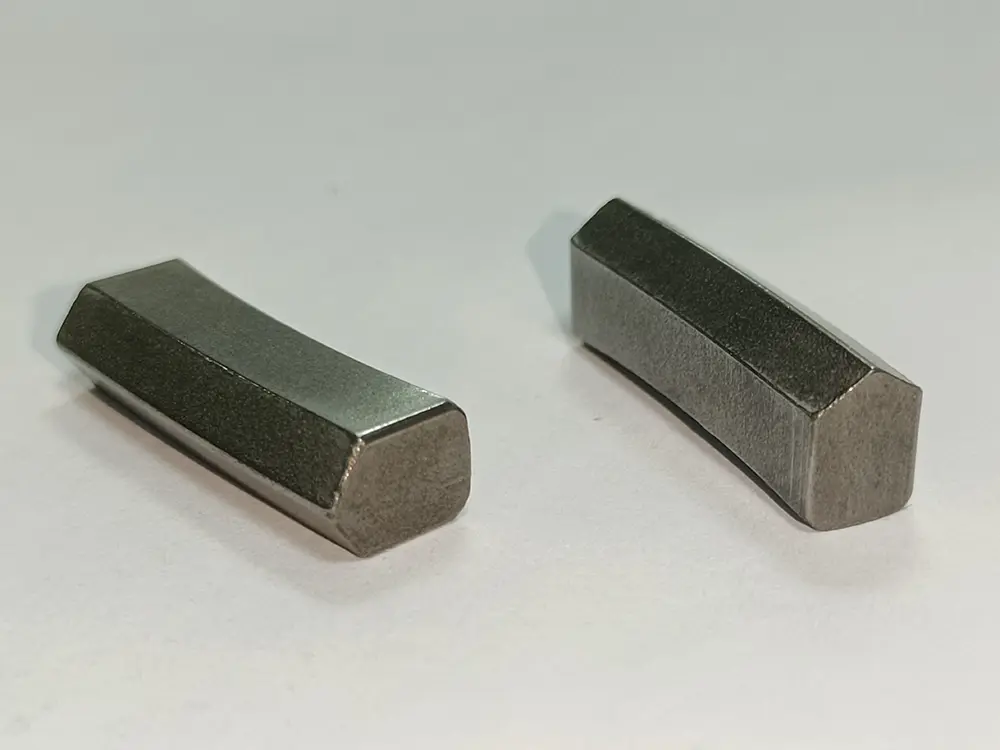

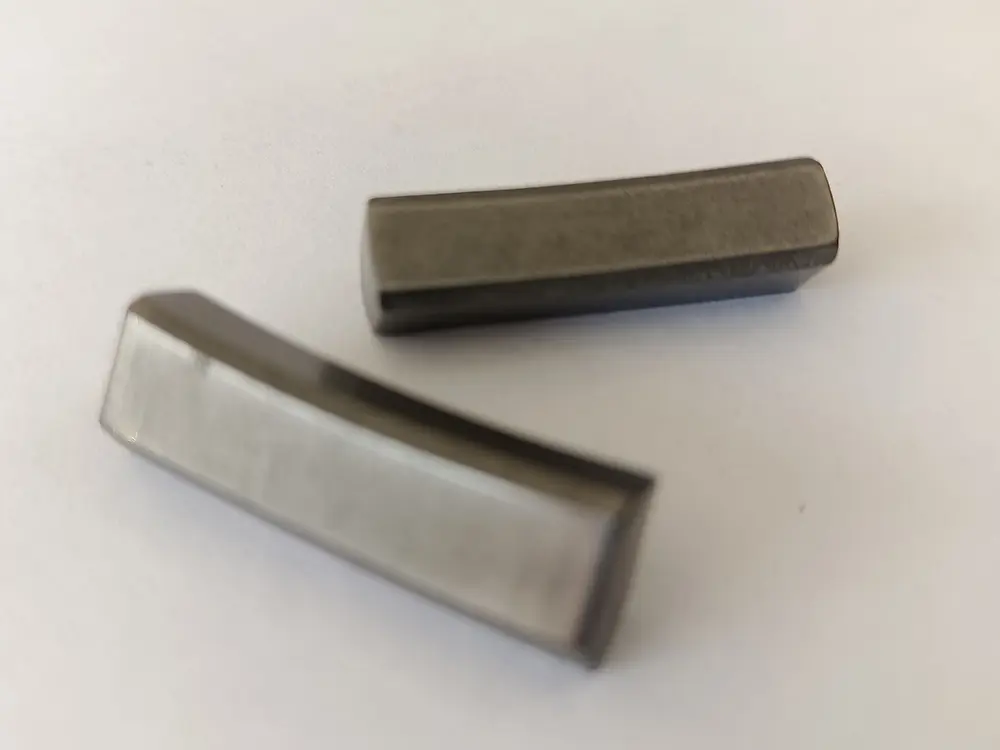

The cemented carbide wear-resistant block for the geology and mining field is a block-shaped cemented carbide component designed for high-wear scenarios in geological and mining operations. It boasts extremely high hardness, wear resistance and impact toughness. It can be directly installed on the wear contact surfaces of mining equipment (such as crusher liners, excavator bucket teeth, scraper conveyor guides, etc.), which can significantly reduce equipment wear, improve operating efficiency, and adapt to harsh working conditions such as rock crushing and ore transportation.
| Parameter Item | Description |
| Alloy Grades | AS15, AF12, AM15 |
| Cobalt Content (%w/w) | 12.0-15.0 |
| Density (g/cm³) | 13.9-14.3 |
| Hardness (HRA) | 88.7-90.3 |
| Transverse Rupture Strength (N/mm²) | ≥4200 |
| Fracture Toughness (N/mm²·m¹/²) | 11.2-14.5 |
| Size (mm) | 10×10×5 - 100×100×50 (Customizable) |
| Applicable Equipment | Crushers, excavators, scraper conveyors, roadheaders |
Carbide drill bits are high-performance cutting tools designed for drilling into hard, abrasive, or challenging materials. They are distinguished by their cutting edges or tips, which are made from tungsten carbide, a composite material known for its superior hardness and wear resistance compared to standard high-speed steel (HSS).
Large aperture deep hole drill i a deep hole machining machine that integrates BTA drill cutter drill,and gun dril,with a driling diameter of up to φ120mm. High efficient,high-precision,and high smoothness machining of large holes,with a smoothness of Ra0.4~0.8.
Our triple-blade end mills combine precision manufacturing (5-axis grinding) and premium materials (e.g., YG10X carbide) to deliver consistent performance in industrial production.
Product parameter Model Basic Configuration NEXUS-4000-Ⅲ Control System: MATRIX ...
2M2150 deephole honing machine is ideal equipment for deephole machining with high accuracy and high efficiency.This machine is matde with SIEMENS or FANUC CNC system.AC servo motor,honing box adopt stepless speed,and it also mated with Germany ATLANTA high accuracy racks and gears to realize the reciprocating of honing head and it can control the honing position too.This machine is matde with linear guide way and it have service life and high accuracy.
Valve internals refer to the critical components housed within a valve body that directly control the flow, direction, and pressure of a fluid (liquid or gas). While the valve body contains the pressure, it is the internals that perform the essential work of sealing, modulating, and shutting off the flow. Their performance and durability are paramount to the entire system’s reliability. These components are typically designed as replaceable parts, allowing for maintenance and repair without replacing the entire valve body.
Workpiece Material Cutting Speed Vc (m/min) Inspection Spec - Drill Bit Dia(≤12.00-22.00mm) Inspe...
Comma face grooving cutters (also known as comma grooving cutters or face comma cutters) are spec...
Nickel-based corrosion-resistant alloys are a class of advanced metallic materials engineered primarily to withstand extreme corrosive environments. Their foundation is a nickel (Ni) matrix, which is inherently resistant to many corrosives, alloyed with other key elements—primarily chromium (Cr), molybdenum (Mo), and sometimes copper (Cu) and nitrogen (N)—to create a versatile and powerful family of materials for the most aggressive chemical and industrial applications. They are the go-to solution when stainless steels are no longer sufficient.
Our Metal bond CBN/diamond honing stone has the advantage of longer life, higher efficiency and cost effective, can support Sunnen, Nissin, Nagel and Gehring honing machine, widely used in the auto parts (connecting rod, cylinder, fork, rocker arm), sewing parts, mould making, carbide tooling and compressor industry. We provide state of art quality and competitive price and look forward to cooperate with you.
Cemented carbide mushroom-shaped ball tooth is named for its mushroom-like shape. It is an efficient crushing tool component made of cemented carbide material. The head is round and thick, with excellent impact resistance and wear resistance. It is mainly used in crushers, impact drills, roadheaders and other equipment. Suitable for crushing hard materials such as rocks, ores and concrete, it has high crushing efficiency and long service life.
GD-600 Standard gun drill sharpening machine adopt precision rolling track, high-speed motor. The motion is smooth and the friction is small. Grinder can rotate in horizontal and vertical plane. Widely applicable to machine tools with sharpening Fixture canbe accurate and effective grinding a variety of gun drill.50Q Gun Drills Gun Drill Sharpening Fixture is specialized used in dedicated tooling the compact structure, of setup is reasonable and convenient, adjustment is simple, processing is time-saving(once setup to be completed by all angle grinding), the processing of drilling edge, high precision, good accuracy. Grinding range is φ 5-φ 32
Machining accuracy meausre of skewness： 1mm/1000mm(workpiece is not rorate) 0.5mm/10...
Cemented carbide insert is a common core tool component in metal cutting processing. It is made of different grades of cemented carbide and has the characteristics of high hardness, high wear resistance and high temperature resistance. Suitable for various cutting processes such as turning, milling, drilling and planing, it can process various workpieces such as steel, cast iron, non-ferrous metals and composite materials. Different shapes, sizes and cutting edge forms can be customized according to processing requirements.
The cemented carbide wear-resistant bushing dedicated to the geology and mining field is made of cemented carbide material with high cobalt content and high hardness. It is used in key parts of geological exploration and mining equipment to provide wear resistance, impact resistance and sealing protection. It can effectively extend the service life of equipment under harsh working conditions (such as high wear, high pressure, and dusty environments), and is suitable for drilling rigs, roadheaders, conveying equipment, etc.
