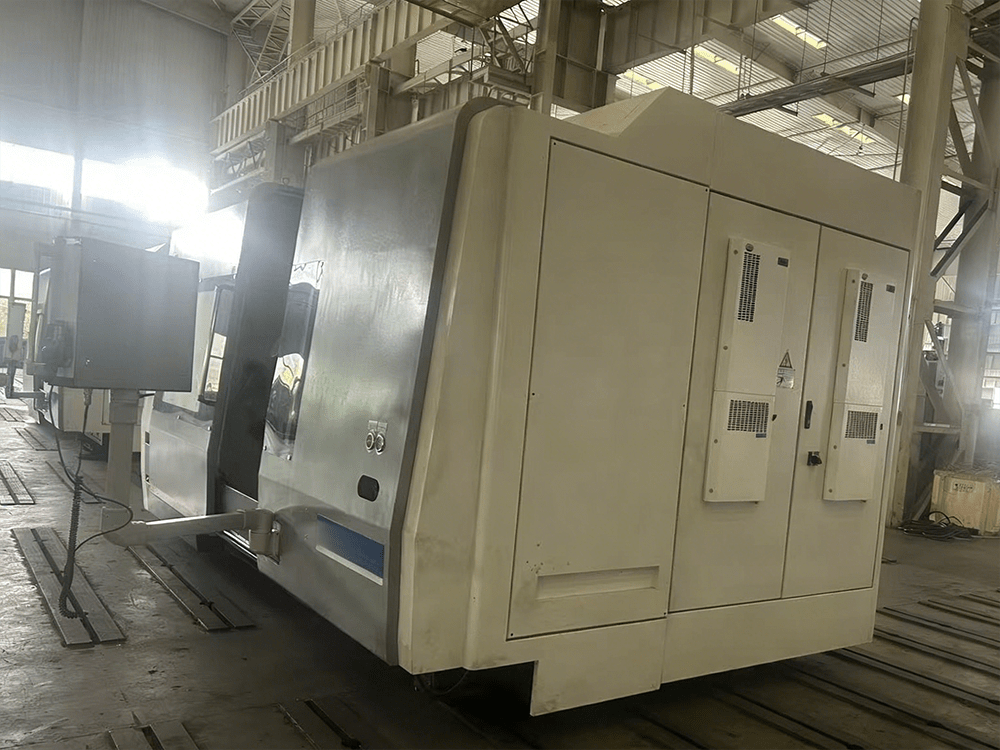

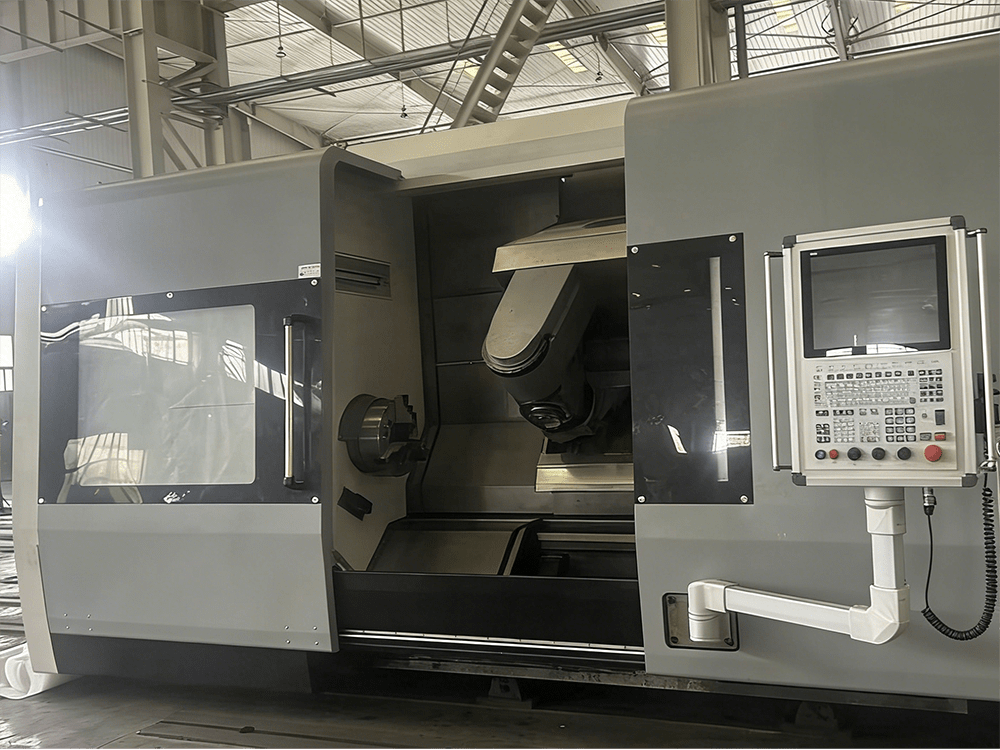

Main instruction Adopting 45°slant bed, the longitudinal and transversal guide way adopts high precision guide way couples to improve the rigidity of machine. The main motor of machine is SIEMENSE SERVO MOTOR with big torque, it can ensure the machine cutting work piece with low speed a...
Adopting 45°slant bed, the longitudinal and transversal guide way adopts high precision guide way couples to improve the rigidity of machine. The main motor of machine is SIEMENSE SERVO MOTOR with big torque, it can ensure the machine cutting work piece with low speed and big torque, and high speed turning. The transmission of the X and Z axis adopt spring coupling to avoid the transmission error and improve the machine speed and positioning accuracy. The machine adopts 12 positions servo power turret which made in ITALY, and proper tools, the machine has wide technology adaptability.
The design of the machine has properties of times feeling, beautiful outlook and practicality. The electric part has good rigidity, responding speed. The machine mated with A.C digital driven CNC system and semi-circled control, the machine has strong ability to resistant disturb and the CNC system has the advanced function of pitch error compensation, constant line turning, firmed cycle, programming the data directly, DNC communication etc.
| items | unit | parameter | ||
| Machine capacity | Swing diameter over bed | mm | Φ600 | |
| max swing diameter over slide | mm | Φ420 | ||
| distance between centers | mm | 2000 | ||
| max length of work piece | mm | 1950 | ||
| turning diameter | shaft | mm | underΦ320 | |
| plate | mm | underΦ420 | ||
| max weight of work piece | shaft | kg | 1200 | |
| plate | kg | 350 | ||
