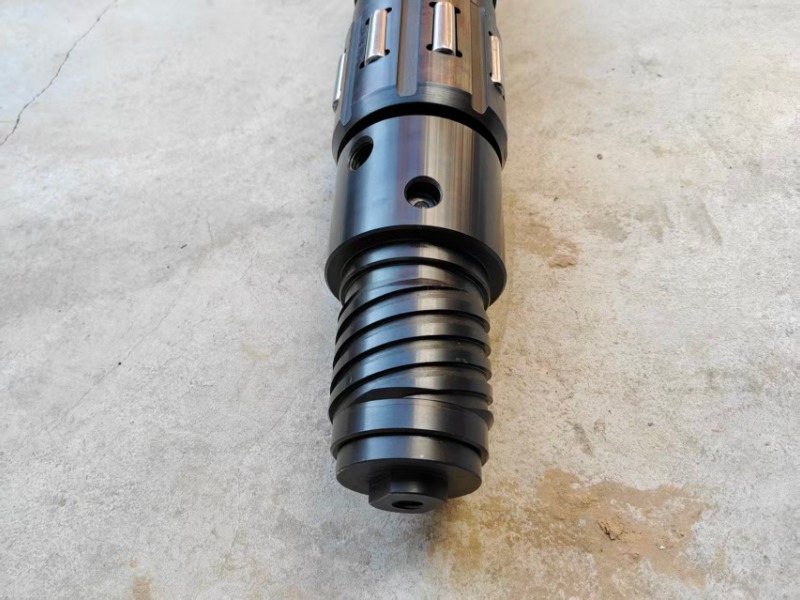

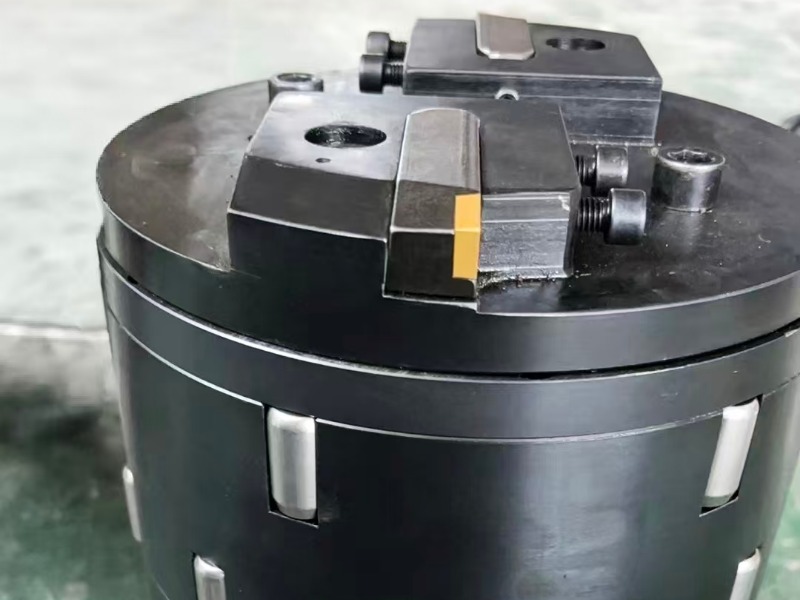

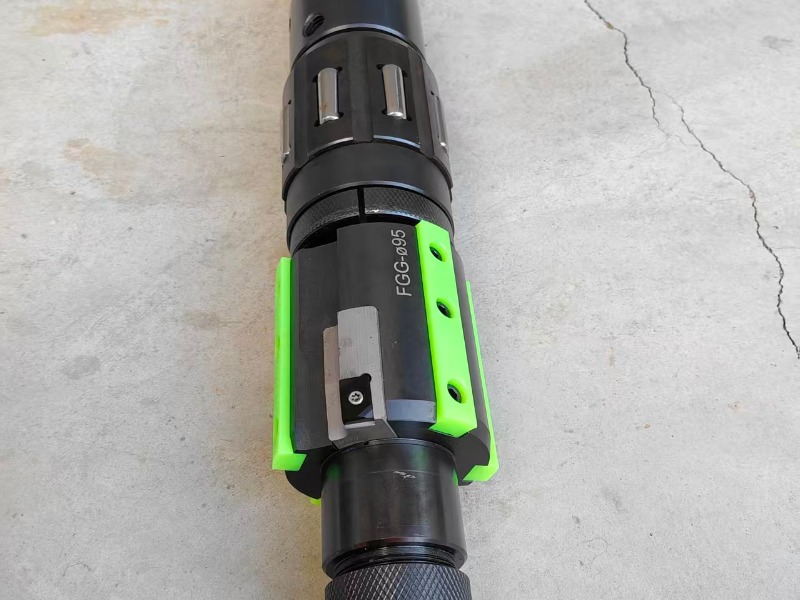

The processing efficiency is more than 30 times that of traditional honing processes, improving production efficiency and reducing production costs.
- Fully automatic tool expansion and contraction throughout the process reduces operator fatigue.
- Radial cutting of 1.5-3 mm and feed rate of over 1000 mm (normal value) produces an ultra-smooth surface, thereby reducing seal wear and making it an ideal choice for pistons.
- The entire tool is machined from high-quality imported steel, ensuring stable and reliable performance.
- Ball bearings are made of GCRI5SIMN material, extending service life by 80%.
- Primarily replaces traditional honing processes.and the service life is extended by 80%Mainlwhe taciuona nome proees
The RFD6ZX1010-1000 six-axis drilling and milling compound deep hole drilling machine is mainly used for deep hole drilling and milling. Equipped with a high-precision CNC turntable (B-axis) and a sliding table rotation axis (A-axis), it can complete five-sided drilling and milling with one clamping. This expands the machine’s processing range, reduces clamping times, greatly improves processing accuracy and efficiency, and effectively saves production costs. It is mainly used for oblique hole processing in molds, mechanical parts, etc.
Indexable reamers are precision hole-finishing tools for metalworking, featuring replaceable carbide inserts (no regrinding needed) and modular designs. They deliver high accuracy, efficiency, and cost-effectiveness in mass production, replacing traditional solid reamers for medium-to-large batch machining. Our reamers are engineered with advanced insert clamping, internal coolant systems, and wear-resistant coatings to meet strict tolerance and surface finish requirements.
The lathes are suitable for machining various small and medium-sized steel parts. They can turn the inner holes, outer circles, end faces, cones and various threads – metric, imperial, module and diametral pitch threads – of various workpieces, and can also undertake drilling and boring functions.
This machine tool is a special-purpose machine tool for machining cylindrical deep-hole parts. It is suitable for boring cylindrical deep-hole workpieces. During boring, an oil feeder is used to supply oil, and the chips are discharged to the chip hopper at the head of the machine through the cutting zone. During drilling, an internal chip removal method (BTA) is used, that is, an oil feeder supplies oil, and the chips are discharged from the inside of the drill rod to the chip hopper at the rear of the machine through the cutting zone.
Threaded carbide rod with holes are mainly used for processing tungsten parts or as a tool bit of processing lathe, conductors, steel-making burdening and additives.
The cemented carbide gun drill bit for the geology and mining field is the core component of the gun drill tool. It is made of high-strength and high-wear-resistant cemented carbide material. Suitable for deep hole drilling operations in geological and mining exploration, it can perform efficient drilling in hard geological bodies such as rocks and ores. It features high drilling precision, smooth chip removal and long service life, and is compatible with various geological drilling rigs.
A Grade Carbide manufactures solid tungsten carbide rods in a wide range of carbide grades, lengths, and diameters. We offer both ground(h5 and h6) and as sintered (unground) solid rods, length 330mm and 310mm, and cut to length.
Iron-based wrought high-temperature alloys are a class of metallic materials with iron (Fe) as the principal element, engineered to maintain good mechanical strength and resistance to degradation (like oxidation) at elevated temperatures, typically in the range of 540°C to 760°C (1000°F to 1400°F). The “wrought” designation indicates they are shaped by thermomechanical processes such as hot rolling, forging, or extrusion, which refine their microstructure to provide a favorable combination of strength, ductility, and fabricability. They serve as a cost-effective and highly versatile solution for a wide array of high-temperature applications, bridging the performance gap between stainless steels and more expensive nickel or cobalt-based superalloys.
Cemented carbide mushroom-shaped ball tooth is named for its mushroom-like shape. It is an efficient crushing tool component made of cemented carbide material. The head is round and thick, with excellent impact resistance and wear resistance. It is mainly used in crushers, impact drills, roadheaders and other equipment. Suitable for crushing hard materials such as rocks, ores and concrete, it has high crushing efficiency and long service life.
This carbide gun drill, also known as a deep hole cutting insert drill, represents an advanced and efficient solution for deep hole machining. It integrates drilling, boring and reaming into a single operation, enabling high – precision hole processing in one pass. Crafted from premium carbide materials with specialized coating and structural design, it excels in handling harsh machining conditions while maintaining excellent stability and long service life, making it a core tool for precision manufacturing across multiple industries.
Carbide Ball Teeth, also known as carbide ball inserts, tungsten carbide ball teeth, or conical picks, are a specific type of wear part and cutting tool characterized by their hemispherical (ball-shaped) head made of tungsten carbide. They are primarily designed for robust impact, crushing, and grinding applications, rather than precise shearing or slicing. Their unique design allows them to transmit high point load forces into the material, making them ideal for breaking extremely hard and abrasive substances.
Features： 1.Use high-quality tungsten carbide as raw material. 2.Adopt the world advanced preparation technology. 3.Various types can be produced, with German import automatic extrusion equipment.
Carbide strips, also known as tungsten carbide strips or cemented carbide flat bars, are rectangular or flat-bar-shaped pieces made from tungsten carbide. They are engineered to provide superior wear resistance as protective liners or cutting edges on machinery and equipment subjected to severe abrasion.
Workpiece Material Cutting Speed Vc (m/min) Inspection Spec - Drill Bit Dia(≤12.00-22.00mm) Inspe...
Product parameter Model Basic Configuration INTEGREX200-ⅢST X-axis travel: 580mm...
Square CNC turning inserts are one of the commonly used cutting tools in CNC turning processes.
