Parameter ■This machine is portable, accurate, and durable, equipped witha diamond grinding wheel made in Taiwan. ■It can sharpen the tip angle(apex angle), front cutting edge(positive rake angle), chip flute (rear angle), and the size of the center transverse blade can be adjusted at w...

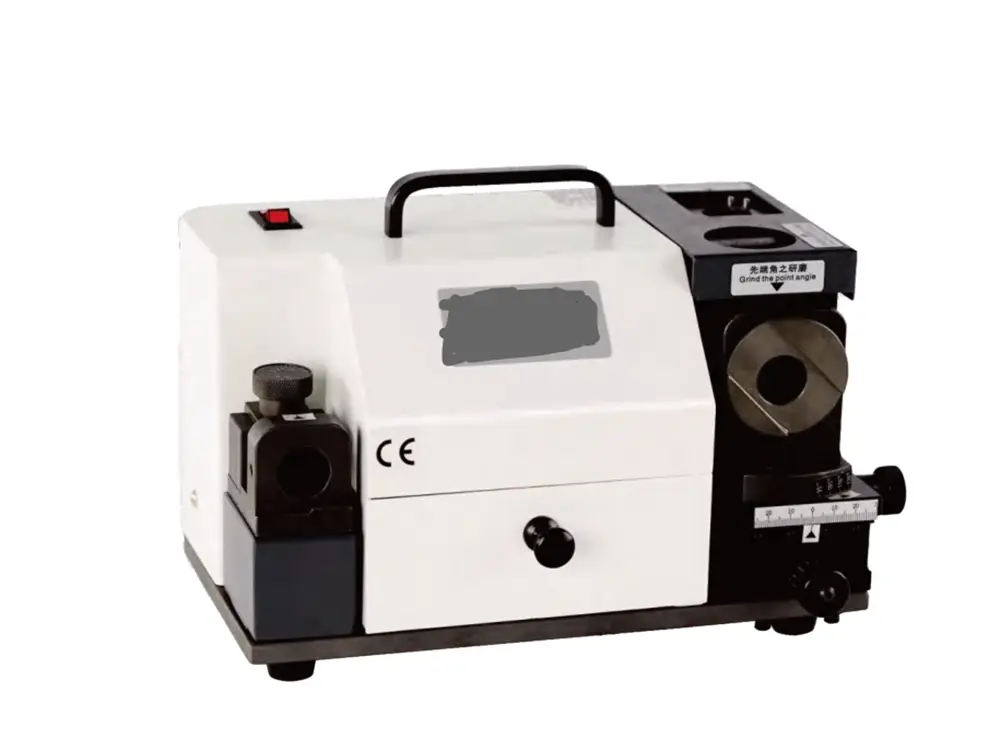

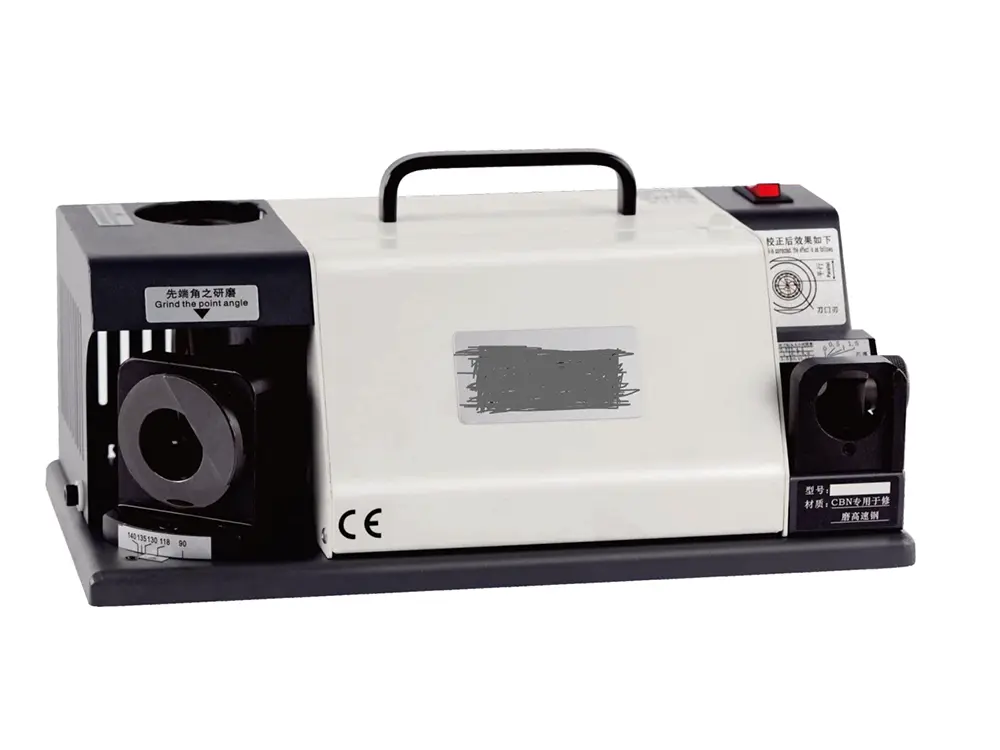

■This machine is portable, accurate, and durable, equipped witha diamond grinding wheel made in Taiwan.
■It can sharpen the tip angle(apex angle), front cutting edge(positive rake angle), chip flute (rear angle), and the size of the center transverse blade can be adjusted at will. easier.

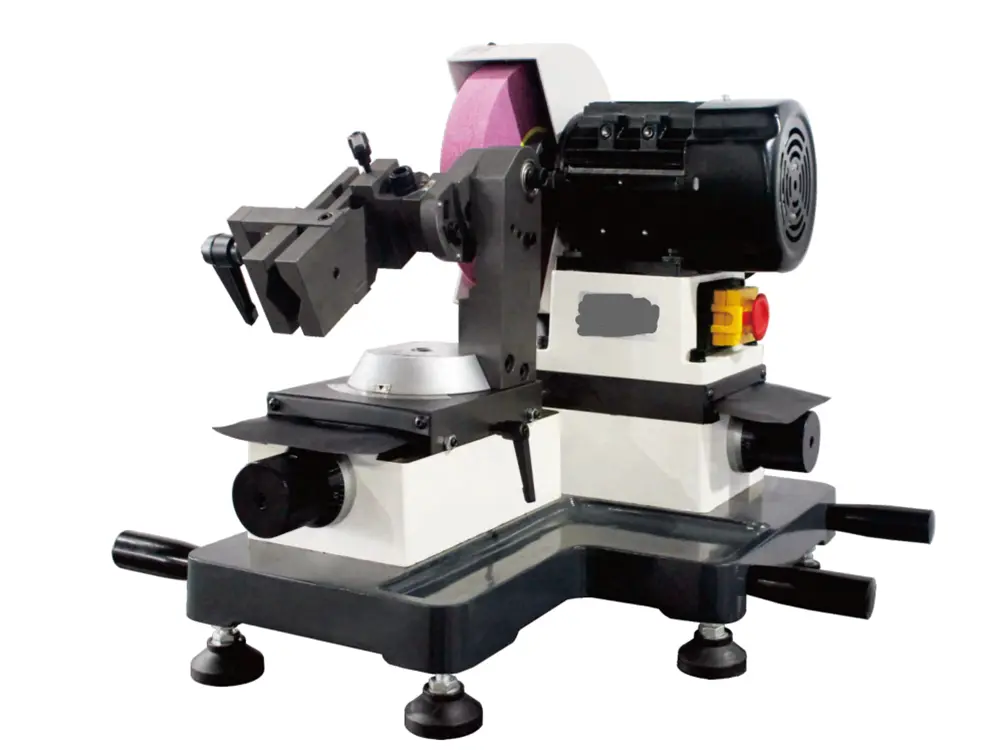

Z32 is a compound drill grinding machine(left and right double-head grinding work).
|
Model |
Z13/Z13D |
Z20 |
Z26 |
Z32 |
|
Grinding range |
φ3-φ13(φ14) |
φ3-φ20 |
(φ8)φ13-φ26(φ32) |
φ3-φ32 |
|
Point angle |
90°-140° |
95°-140° |
95°-140° |
90°-140°/95°-140° |
|
Power |
AC,220V±10% |
AC,220V±10% |
AC,220V±10% |
AC,220V±10% |
|
Motor |
120W/4400RPM |
160W/4400RPM |
250W/4400RPM |
250W/4400RPM |
|
Dimension |
36×21×19cm |
43×22×21cm |
43×23×21cm |
42×27×34cm |
|
Weight |
9KG |
12KG |
22KG |
29KG |
