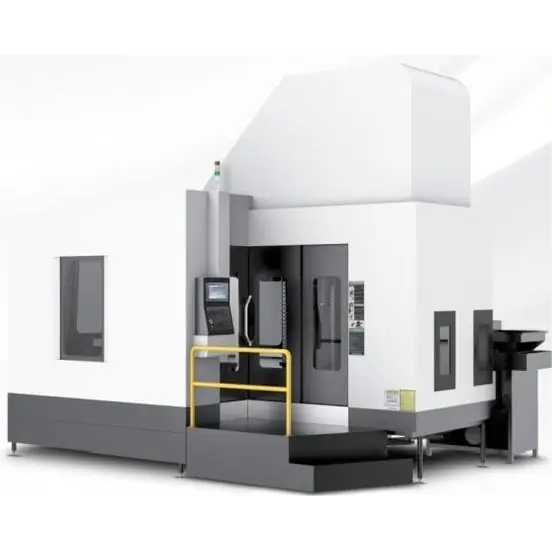

The RFD6ZX1010-1000 six-axis drilling and milling compound deep hole drilling machine is mainly used for deep hole drilling and milling. Equipped with a high-precision CNC turntable (B-axis) and a sliding table rotation axis (A-axis), it can complete five-sided drilling and milling with one clamping. This expands the machine’s processing range, reduces clamping times, greatly improves processing accuracy and efficiency, and effectively saves production costs. It is mainly used for oblique hole processing in molds, mechanical parts, etc.
| ITEM | UNIT |
RFD6ZX 0505-500 |
RFD6ZX 1010-1000 |
RFD6ZX 1512-1300 |
RFD6ZX 2516-1500 |
RFD6ZX 3016-1500 |
|
| Processing travel | Gun drill hole diameter |
mm |
F3-35 |
F3-35 |
F3-38 |
F3-50 |
F3-50 |
| Spray suction drill hole diameter |
mm |
/ |
|||||
| Max.drilling depth of gun drill |
mm |
500 |
1000 |
1300 |
1500 |
1500 |
|
| Max.drilling depth of spray suction drill |
mm |
1 |
|||||
| Worktable left and right travel(X-axis) |
mm |
500 |
1000 |
1500 |
2500 |
3000 |
|
| Spindle up and down travel(Y-axis) |
mm |
500 |
1000 |
1200 |
1600 |
1600 |
|
| Worktable front and rear travel (Z-axis) |
mm |
400 |
700 |
700 |
1000 |
1000 |
|
| A-axis(range of rotation angle of slider) | ( Rotate the spindle head upby20°and down | by45°(optional+20°to-30°) | |||||
| Feed Speed | Max.spindle speed |
rpm |
6000 |
4500 |
|||
| Max.speed of the slider |
·/' |
215 |
|||||
| Max.speed of worktable |
rpm |
10 |
5.5 |
2.7 |
|||
| Spindle feed speed |
mm |
0~3000 |
|||||
| X/Y/Z/W axis fast feed |
m/min |
16/10/16/16 |
7.5 |
||||
| Power | Spindle motor power | kW | 11/15 |
5/18.5 |
|||
| Worktable left and right moving motors(X-axis) |
Nm |
15 | 28 | 28 | 40 | ||
| Spindle up and down movement motor(Y-axis) |
Nm |
28 |
28 |
28 |
|||
| Column front and rear moving motor (Z-axis) |
Nm |
15 |
18 |
22 |
30 |
||
| Spindle left and right movement motor(W-axis) |
Nm |
15 |
15 |
22 |
30 |
||
| Sliding pillow rotating motor(A-axis) |
Nm |
28 |
28 |
22 |
22 |
||
| Worktable motor(B-axis) |
Nm |
11 |
28 |
30 |
40 |
||
| Total power |
kW |
50 |
55 |
60 |
70 |
||
| Other | Worktable size(L×W) |
mm |
φ315 |
630 or 800 |
1400×1200 |
2000×1600 |
2400×2000 |
| Worktable load capacity |
kg |
350 |
1500/3000 |
8000 |
15000 |
20000 |
|
| Spindle end taper |
BT40 |
BT50 |
|||||
| Range of coolant pressure |
Mpa |
2~10 |
2~10 |
||||
| Range of coolant flow rate |
L/min |
6~80 |
6~120 |
||||
| Machine size(L×W×H) |
mm |
4850×3280×3225 |
6080×370×3900 |
7000×4800×4200 |
8900×6300×4800 |
9200×6830×480 |
|
| Total weight |
kg |
100000 |
14000 |
18000 |
35000 |
42000 |
|
| Control system | FANUC 0i-MF Plus/220MA | ||||||
The RFD6ZX1010-1000 six-axis drilling and milling compound deep hole drilling machine is mainly used for deep hole drilling and milling. Equipped with a high-precision CNC turntable (B-axis) and a sliding table rotation axis (A-axis), it can complete five-sided drilling and milling with one clamping. This expands the machine’s processing range, reduces clamping times, greatly improves processing accuracy and efficiency, and effectively saves production costs. It is mainly used for oblique hole processing in molds, mechanical parts, etc.
This machine integrates advanced technologies in modern industry:
The adoption of the above advanced technologies ensures that the machine’s performance, precision, processing range, operation, and work efficiency have reached the advanced level of similar machines.
| Machine Model | RFD6ZX1010-1000 | RFD6ZX1010-1000 | ||
| Item | Unit | |||
| 1. Hole diameter processing range | mm | Φ4~Φ38 | ||
| 2. Maximum drilling depth (W axis) | mm | 1000 | ||
| 3. Worktable left-right travel (X axis) | mm | 1300 | ||
| 4. Spindle up-down travel (Y axis) | mm | 1000 (900 above worktable, 100 below worktable) | ||
| 5. Worktable front-back travel (Z axis) | mm | 700 | ||
| 6. Square ram rotation (A axis) | degrees | Spindle head up 20°, down 45° | ||
| 7. Worktable rotation (B axis) | degrees | 360 | ||
| 8. Gun drill spindle maximum speed | rpm | 6000 | ||
| 9. Spindle feed speed | mm/min | 0~3000 | ||
| 10. Gun drill spindle motor power | kW | 15/18.5 | ||
| 11. Rapid traverse (X/Y/Z/W/) | m/min | 10/7.5/10/10 | ||
| 12. Worktable left-right movement motor (X axis) | kW | 5.9 | ||
| 13. Spindle up-down movement motor (Y axis) | kW | 5.9 | ||
| 14. Spindle front-back movement motor (W axis) | kW | 3.9 | ||
| 15. Worktable front-back movement motor (Z axis) | kW | 5.9 | ||
| 16. Slide rotary motor (A axis) | kW | 5.9 | ||
| 17. Turntable motor (B axis) | kW | 5.9 | ||
| 18. Total machine motor power | kW | 45 | ||
| 19. Rotary worktable load capacity | kg | 3000 | ||
| 20. Rotary worktable minimum division degree | degrees | 0.001 | ||
| 21. Rotary worktable area (length × width) | mm | 800X800 | ||
| 22. Coolant flow range | L/min | 0～80 | ||
| 23. Coolant pressure range | MPa | 0-10 | ||
| 24. Machine floor area (length X width) | mm | 6350X4030 | ||
| 25. Maximum machine height | mm | Sheet metal height 3250, maximum height 4500 | ||
| 26. Machine weight | ton | 14 | ||
One set of RFD6ZX1010-1000 six-axis drilling and milling compound deep hole drilling machine, configured as follows:
| Serial Number | Configuration | Remarks |
| 1 | Syntec 220MA CNC system | |
| 2 | Handwheel control box | |
| 3 | Full machine protective cover | |
| 4 | Centralized lubrication station | |
| 5 | Drilling cooling system | |
| 6 | Drilling air pressure system | |
| 7 | Spiral chip conveyor (3 units) | |
| 8 | Macro program | |
| 9 | Gun drill elastic chuck (Φ25) | |
| 10 | Three-color warning light | |
| 11 | Adjustment tools | |
| 12 | Work light | |
| 13 | Foundation pads, bolts | |
| 14 | Φ10.02 deep hole drill bit and guide sleeve (1 each), BT40 tool holder (1) | |
| 15 | Electrical cabinet air conditioner | |
| 16 | Oil temperature controller | |
| 17 | Hydraulic counterweight | |
| 18 | Guide seat (1), guide brackets (2) | |
| 19 | A axis gear drive | |
| 20 | Guide rails: X: RGW45 (2), Y: RGW55 (2) + RGW45 (1), Z: RGW45 (4), W: RGW45 (2) | |
| 21 | Ball screws: X/Y/Z/W: R5010 |
| Serial Number | Name |
| 1 | None |
| 2 | None |
| 3 | None |
1.Machine operation manual
2.CNC system operation manual
3.CNC system maintenance manual
4.Qualification certificate
5.Packing list
| Component Name | Supplier |
| 1. CNC system and servo motor | Syntec |
| 2. Main electrical components | Schneider |
| 3. Linear guides | Taiwan HIWIN |
| 4. Ball screws | Taiwan TBI/HIWIN |
| 5. Hydraulic components | Yuci Yuken |
| 6. Pneumatic components | AIRTAC |
| 7. Lubrication components | Deyang/Huangjinjia |
| 8. Filters | Qinghui Hydraulics |
| 9. Spindle | Taiwan Danquan/Jianchun |
| 10. CNC rotary table | Yantai Universal |
| Item Status | Dark brown transparent liquid | Kinematic viscosity 40cst | 13-18 |
| Flash point (open) ℃ | Not lower than 100 | Safety test | (-10℃) qualified |
| Acid value | Mg koh/g not more than 2 | Sintering load PB.N | Not less than 6080 |
| Pour point ℃ | Not higher than -8 |
| Serial Number | Inspection Item | Tolerance |
| 1 | Straightness of the worktable moving along the X axis in the X-Y plane | Local arbitrary 300mm measuring length: 0.02 |
| 2 | Inclination of the worktable when moving along the X axis | 0.02/300 over full stroke |
| 3 | Perpendicularity of Y axis movement to the worktable surfacea: In X-Y planeb: In Y-Z plane | 300mm lengtha: 0.02b: 0.02 |
| 4 | Perpendicularity between W axis movement of the spindle box and X axis movement | 0.02 over any 300mm measuring length |
| 5 | 1. Parallelism between spindle box movement along W axis and worktable surface2. Parallelism between worktable movement along Z axis and worktable | 1. 0.03 over 300mm length2. 0.02 over full stroke |
| 6 | a. Indexing accuracy of the rotary table | a. ±0.006° |
| b. Bidirectional repeat positioning accuracy | b. ±0.003° | |
| 6 | a. Indexing accuracy of A axis rotation | a: ±0.006° |
| b. Repeat positioning accuracy of A axis rotation | b: ±0.003° | |
| 7 | Bidirectional positioning accuracy of X, Y, Z axis movements | X axis 0.02Y axis 0.02Z axis 0.02 |
| 8 | Bidirectional repeat positioning accuracy of X, Y, Z axis movements | X axis 0.015Y axis 0.015Z axis 0.015 |
Working accuracy inspection
| Material | Hole depth mm | Tool | Hole diameter tolerance | Feed rate mm/min | Hole deflection (vertical/horizontal) | |
| Oblique hole | Straight hole | |||||
| 45 | 300 | Φ10.02 drill bit | IT8~IT10 | 50 | 0.2/300 | 0.15/300 |
Notes: 1. Deflection of the drill hole center from the reference plane. 2. Standard test piece length 300mm, material 45, normalized state. 3 Effective measuring length for guaranteed hole diameter quality: hole diameter * 100. 4. Roundness of drilled hole: 0.008~0.015. 5. Roughness of drilled hole: 3.2 to 0.4. 6. Hole diameter accuracy grade: IT8~IT10.
The carbide gun drill feather key is a precision-engineered guide & positioning component for carbide gun drills (deep-hole drilling tools). It ensures stable cutting, accurate hole alignment, and extended tool life during high-precision deep-hole machining. Made of premium tungsten carbide (WC-Co) with advanced coating technology, it delivers exceptional wear resistance and load-bearing capacity in harsh machining environments.
Cemented carbide flat-top tooth is a cemented carbide toothed component with a flat top. It has high strength, high wear resistance and good load distribution capacity. It is mainly used in extrusion, crushing, forming and other processes, and is widely applied in mining machinery, construction machinery, powder metallurgy equipment and other fields. It can effectively bear high pressure and impact load, and is suitable for processing materials with high hardness.
Carbide cutting teeth refer to the tooth-like or tip components made from tungsten carbide, a composite material known for its exceptional hardness, wear resistance, and durability. These teeth are typically brazed or mounted onto various tools and machinery to serve as the primary cutting, drilling, or grinding surface.
Cemented carbide ball tooth is a multi-functional cemented carbide cutting/crushing component with a spherical head. It has excellent impact toughness, wear resistance and cutting performance. Widely used in mining, tunnel excavation, building crushing and other fields, it is installed on drilling rigs, crushers, excavators and other equipment. It can efficiently crush hard materials such as rocks, ores and concrete, and is a key wearing part in the geology, mining and construction industries.
The term “Carbide Water Tap” does not typically refer to a standard household faucet. Instead, it describes a specialized tungsten carbide valve component or a wear-resistant tap used to control the flow of water, slurry, or other abrasive fluids in industrial settings. The “carbide” designation indicates that the critical wear-prone parts of this valve are made from or protected by tungsten carbide to ensure extreme durability.

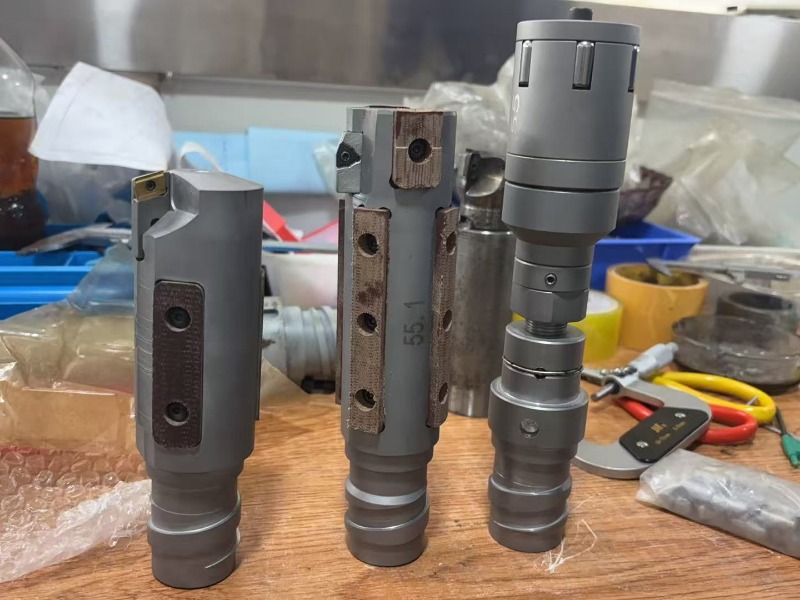

DR series cutting tools are mainly used for processing cold drawn rubes, precision drawn rubes and cold rolled rubes-
V-CUT knives (also known as V-shaped cutting knives or V-groove knives) are specialized tools for PCB (Printed Circuit Board) processing, metal sheet grooving, and V-groove machining of materials such as acrylic and plastic. Below is a detailed description from the perspectives of core characteristics, classification, parameters, and applications:

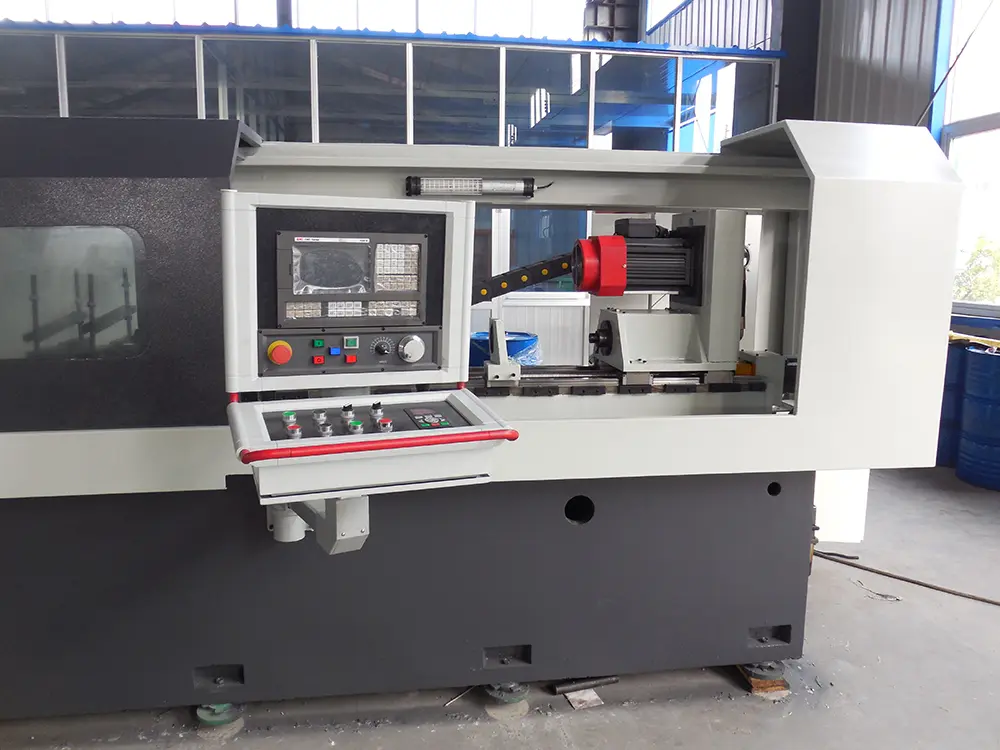

Single axis CNC Deep Hole Gun Drilling Machine is used for processing automobiles, motorcycles, oil pump, nozzle, engineering machinery, mining machinery, military industry and other industries, small and medium-sized deep hole axial workpiece of special equipment.

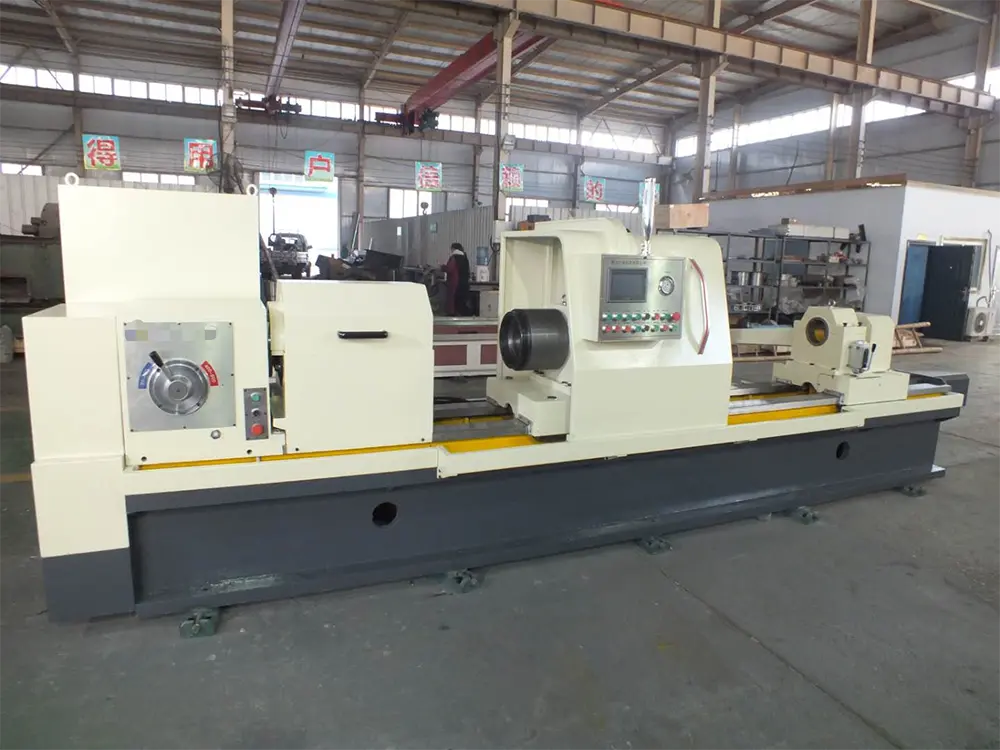

Large aperture deep hole drill i a deep hole machining machine that integrates BTA drill cutter drill,and gun dril,with a driling diameter of up to φ120mm. High efficient,high-precision,and high smoothness machining of large holes,with a smoothness of Ra0.4~0.8.
Features： 1.Use high-quality tungsten carbide as raw material. 2.Adopt the world advanced preparation technology. 3.Various types can be produced, with German import automatic extrusion equipment.

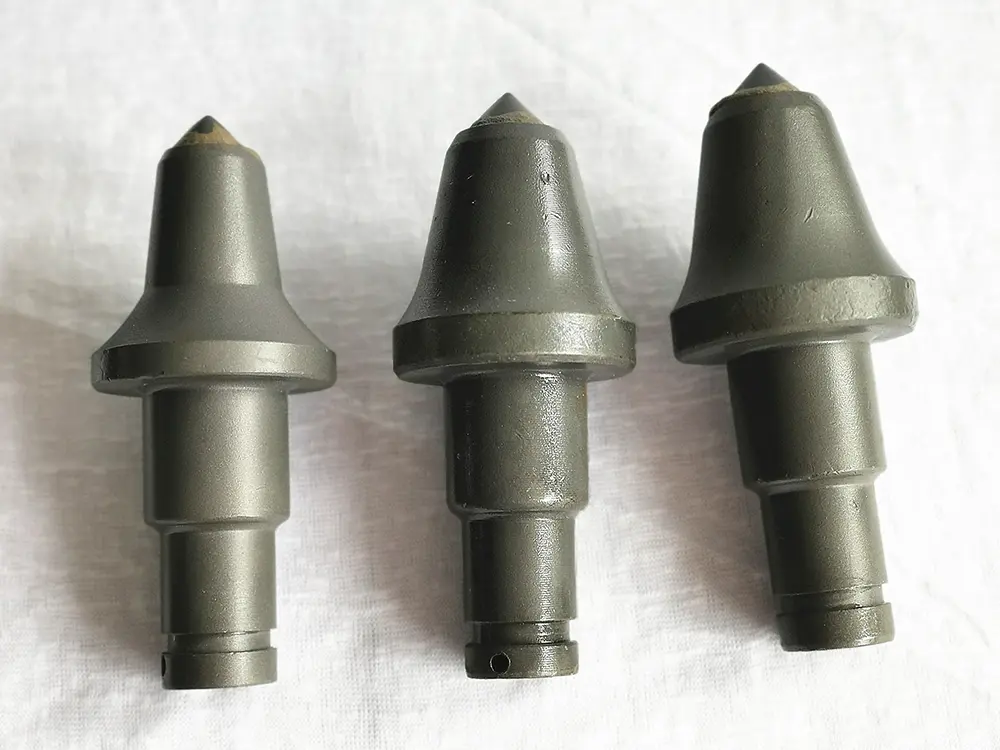

Coal Picks, also known as miner picks, conical picks, or rock picks, are essential cutting tools used in the mining and tunneling industries. They are specifically designed to fracture and excavate materials like coal, soft rock, and other minerals by being mounted on rotating drums of continuous miners, roadheaders, and shearers. Their primary function is to act as the point of attack, transferring the machine’s power into concentrated impact and shear force to break the material.
Carbide strips, also known as tungsten carbide strips or cemented carbide flat bars, are rectangular or flat-bar-shaped pieces made from tungsten carbide. They are engineered to provide superior wear resistance as protective liners or cutting edges on machinery and equipment subjected to severe abrasion.
Product parameter Model Basic Configuration INTEGREX200-ⅢST X-axis travel: 580mm...

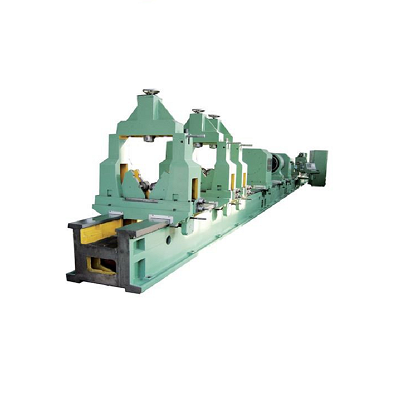

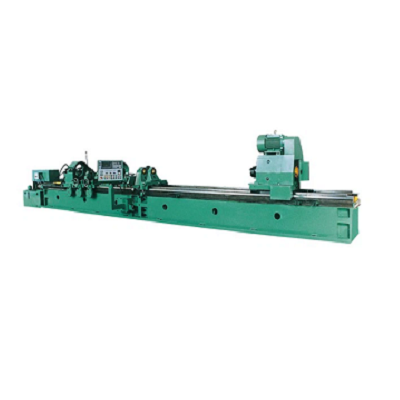

HMS25 HMS35 HMS50 Deep Hole Honing Machine is specially used for finishing the inner hole surface of various hydraulic cylinders, cylinders and other cylindrical parts. After machining, the aperture accuracy of the parts reaches above it7, and the surface roughness reaches ra0.2-0.4 μ m。 The machine tool can also carry out local honing to correct the taper and ovality of parts.
