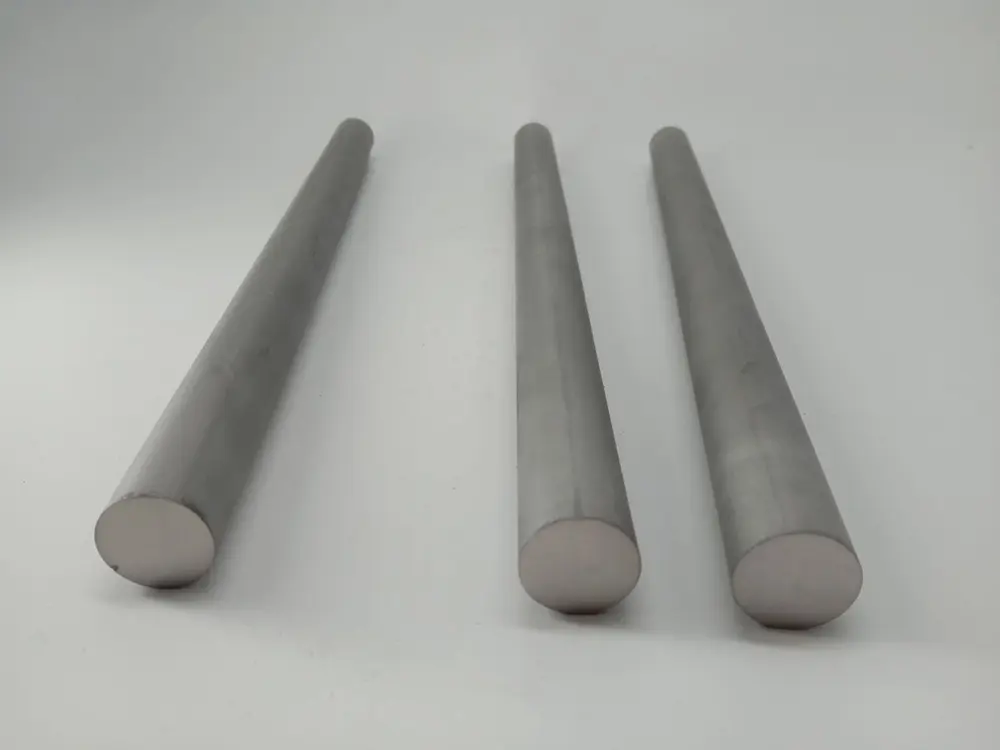

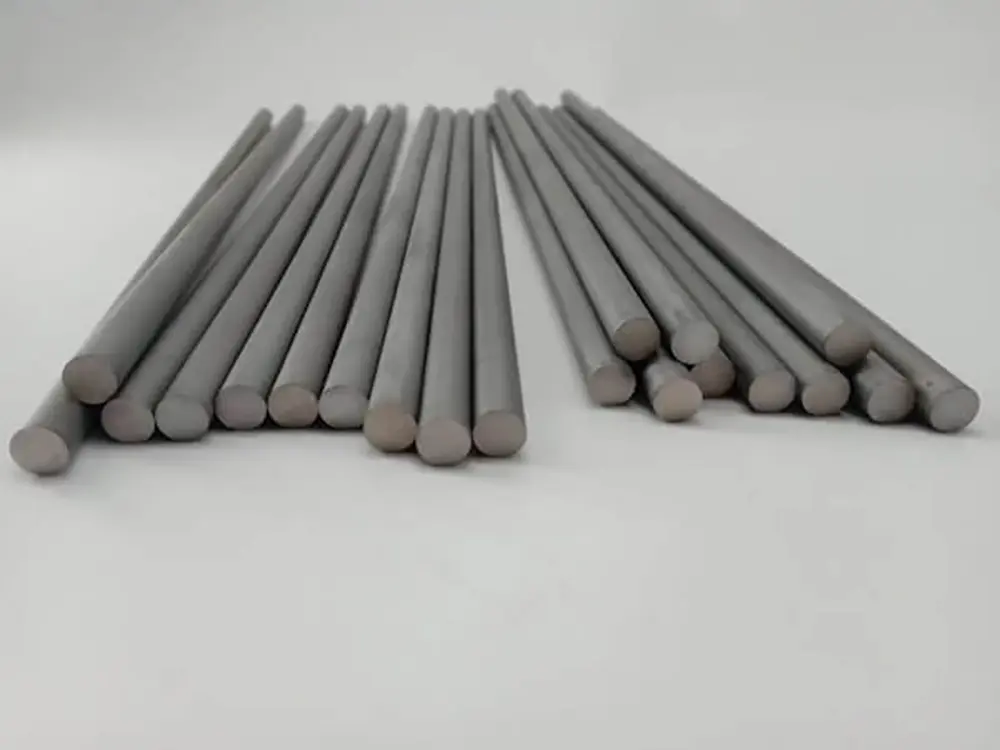

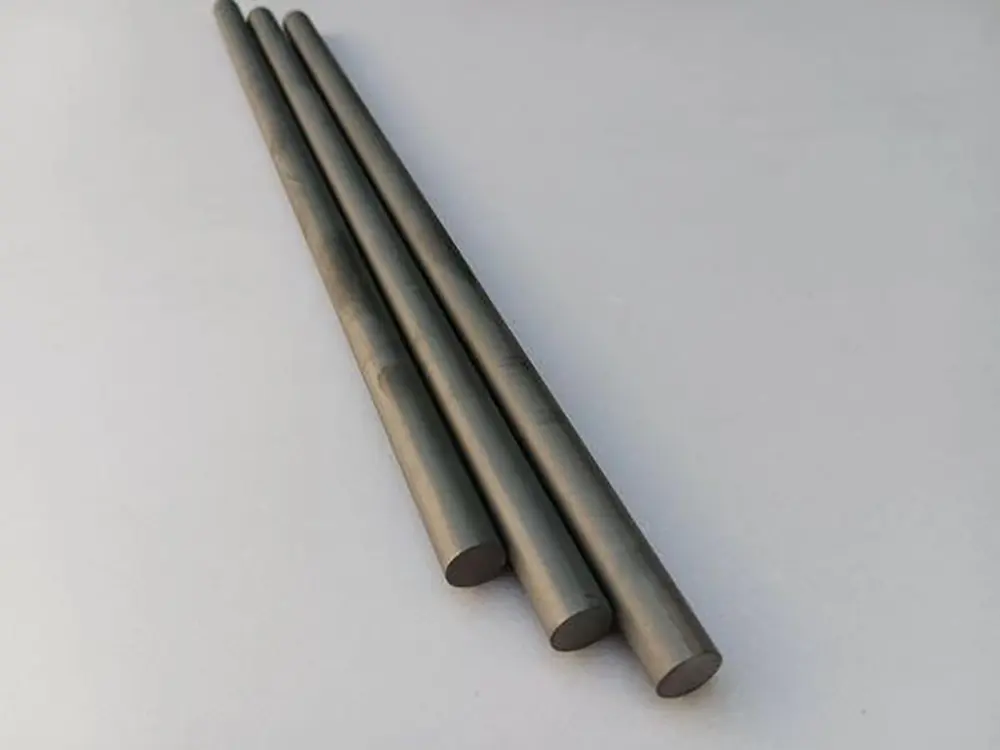

Carbide rods are mainly used for drill bits, end mills and reamers. It can also be used for cutting, stamping and measuring tools. It is used in papermaking, packaging, printing and non-ferrous metal processing industries. In addition, it is also widely used to process high-speed steel cutting tools, carbide milling cutters, carbide cutting tools ,aviation cutting tools, carbide drill bits, milling cutters, coring bits, high-speed steel, tapered milling cutters, metric milling cutters, micro end milling cutters, hinge pilot, electronic tools, step drills, metal cutting saws, double guarantee gold drills, gun barrels, angle milling cutters, carbide rotary file, carbide cutter, etc.
| Dimension | As sintered | Ground | ||||||||
| As sinter
mm |
Ground
mm |
length
mm |
AS7 | AU8 | AS10 | AU12 | AS7 | AU8 | AS10 | AU12 |
| 1.7 | 1.5 | 330 | x | x | ||||||
| 2.2 | 2.0 | 330 | x | x | x | x | ||||
| 2.7 | 2.5 | 330 | x | x | x | |||||
| 3.2 | 3.0 | 330 | x | x | x | x | x | x | x | x |
| 3.7 | 3.5 | 330 | x | x | x | x | ||||
| 4.2 | 4.0 | 330 | x | x | x | x | x | x | x | |
| 4.7 | 4.5 | 330 | x | x | ||||||
| 5.2 | 5.0 | 330 | x | x | x | x | x | x | ||
| 5.7 | 5.5 | 330 | x | x | ||||||
| 6.2 | 6.0 | 330 | x | x | x | x | x | x | x | |
| 6.7 | 6.5 | 330 | x | x | x | x | ||||
| 7.2 | 7.0 | 330 | x | x | x | |||||
| 7.7 | 7.5 | 330 | x | x | ||||||
| 8.2 | 8.0 | 330 | x | x | x | x | x | x | x | |
| 8.7 | 8.5 | 330 | x | x | ||||||
| 9.2 | 9.0 | 330 | x | x | x | |||||
| 9.7 | 9.5 | 330 | x | x | ||||||
| 10.2 | 10.0 | 330 | x | x | x | x | x | x | x | |
| 10.7 | 10.5 | 330 | x | x | ||||||
| 11.2 | 11.0 | 330 | x | x | ||||||
| 12.2 | 12.0 | 330 | x | x | x | x | x | x | x | |
| 13.2 | 13.0 | 330 | x | x | x | x | ||||
| 14.2 | 14.0 | 330 | x | x | x | x | x | x | ||
| 15.2 | 15.0 | 330 | x | x | x | |||||
| 16.2 | 16.0 | 330 | x | x | x | x | x | x | x | |
| 17.2 | 17.0 | 330 | x | x | ||||||
| 18.2 | 18.0 | 330 | x | x | x | x | x | x | x | |
| 19.2 | 19.0 | 330 | ||||||||
| 20.2 | 20.0 | 330 | x | x | x | x | x | x | ||
| 21.2 | 21.0 | 330 | x | x | ||||||
| 22.2 | 22.0 | 330 | x | x | ||||||
| 23.2 | 23.0 | 330 | x | x | ||||||
| 24.2 | 24.0 | 330 | x | x | ||||||
| 25.2 | 25.0 | 330 | x | x | x | x | ||||
| 26.2 | 26.0 | 330 | x | x | ||||||
| 28.2 | 28.0 | 330 | x | x | ||||||
| 30.2 | 30.0 | 330 | x | x | ||||||
| 31.2 | 31.0 | 330 | x | x | ||||||
| 32.2 | 32.0 | 330 | x | x | ||||||
X: delivery from stock, acc general conditions
Other: Special executions, grades or dimensions upon request
