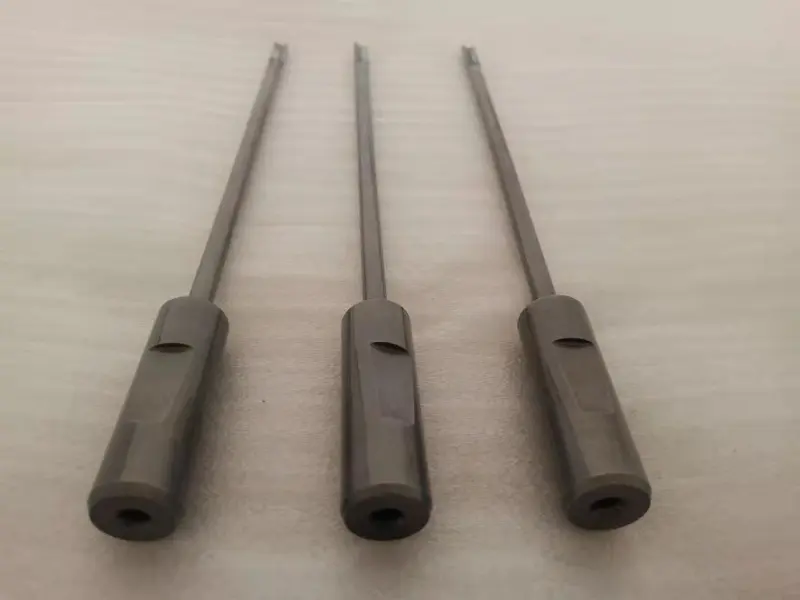

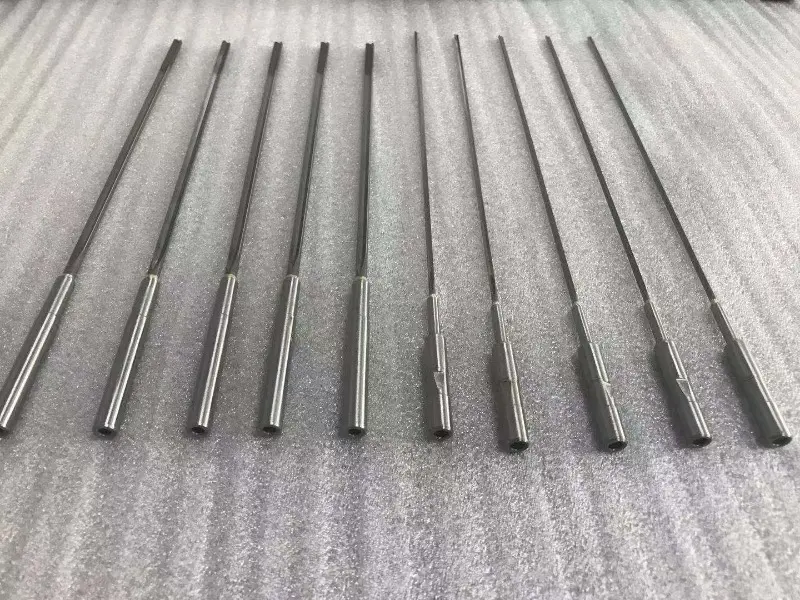

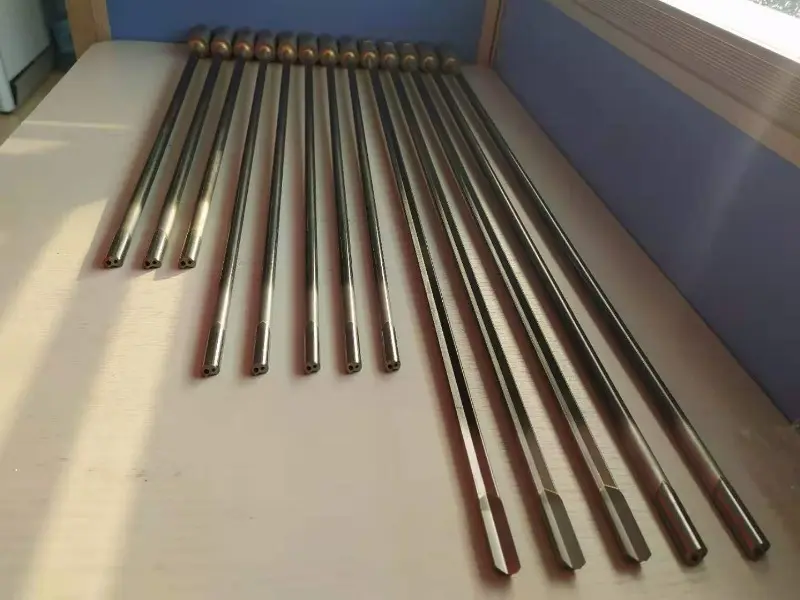

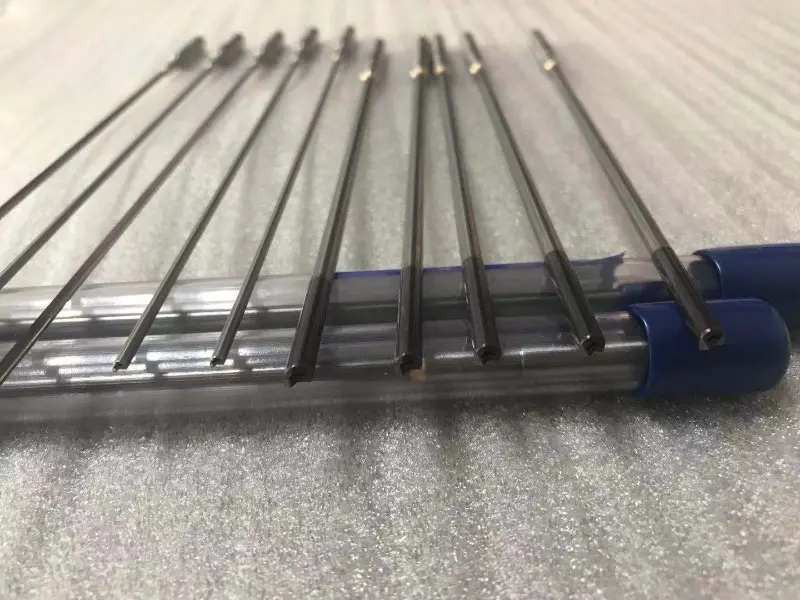

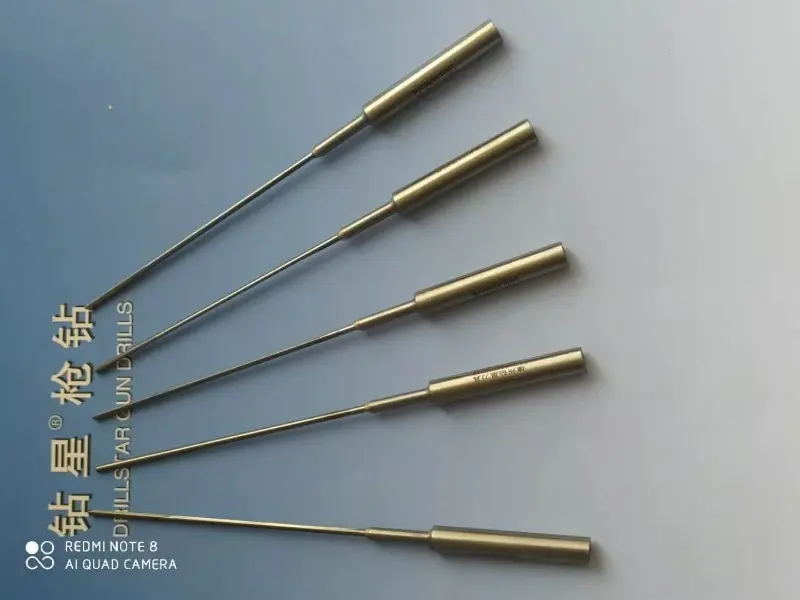

Solid Carbide gun drills are manufactured as a single piece of carbide. The tip and tube is a single piece product which eliminates the braze joint at the head and tube transition. Thus resulting in an extremely strong, ridged tool. Most small diameter gundrills significantly benefit from solid carbide gundrills because they yield the maximum allowable surface footage and feed rates without the whip factor due to their rigidity. Solid carbide gun drills are manufactured using a new process so excessive lead times are avoided.
The advantage of eliminating the braze joint at the tip and tube transition results in a more rigid tool allowing a faster surface footage and feed rates on small diameter gundrills.
| Tool Holder Spec | L1 | L2 | Drill Range | M (Thread) | Fixture No. (part No) |
| 6×45 | 36 | 45 | 0.9-2.5 | - | DZ8000 |
| 4×46 | 34 | 46 | 0.9-2.5 | - | DZ8001 |
| 4×50 | 38 | 50 | 2.5-5 | - | DZ8002 |
| 6×50 | 36 | 50 | 0.9-5 | - | DZ8003 |
| 10×55 | 40 | 55 | 0.9-7 | - | DZ8004 |
| 10×65 | 50 | 65 | 0.9-7 | - | DZ8005 |
| 10×95 | 80 | 95 | 0.9-7 | - | DZ8006 |
| 10×100 | 85 | 100 | 0.9-7 | - | DZ8007 |
| 10×100 | 95 | 110 | 0.9-7 | - | DZ8008 |
| 10×115 | 100 | 115 | 0.9-7 | - | DZ8009 |
| 10×55 | 40 | 55 | 0.9-6 | M6×0.5 | DZ8010 |
| 10×70 | 55 | 70 | 0.9-6 | M6×0.5 | DZ8011 |
| 10×130 | 115 | 130 | 0.9-6 | M6×0.5 | DZ8012 |
| 10×130 | 70 | 130 | 0.9-6 | M10×1.0 | DZ8013 |
| 10×130 | 70 | 130 | 0.9-6 | M10×1.0 | DZ8014 |
| 16×105 | 90 | 105 | 0.9-6 | M10×1.0 | DZ8015 |
| 16×130 | 115 | 130 | 0.9-6 | M10×1.0 | DZ8016 |
