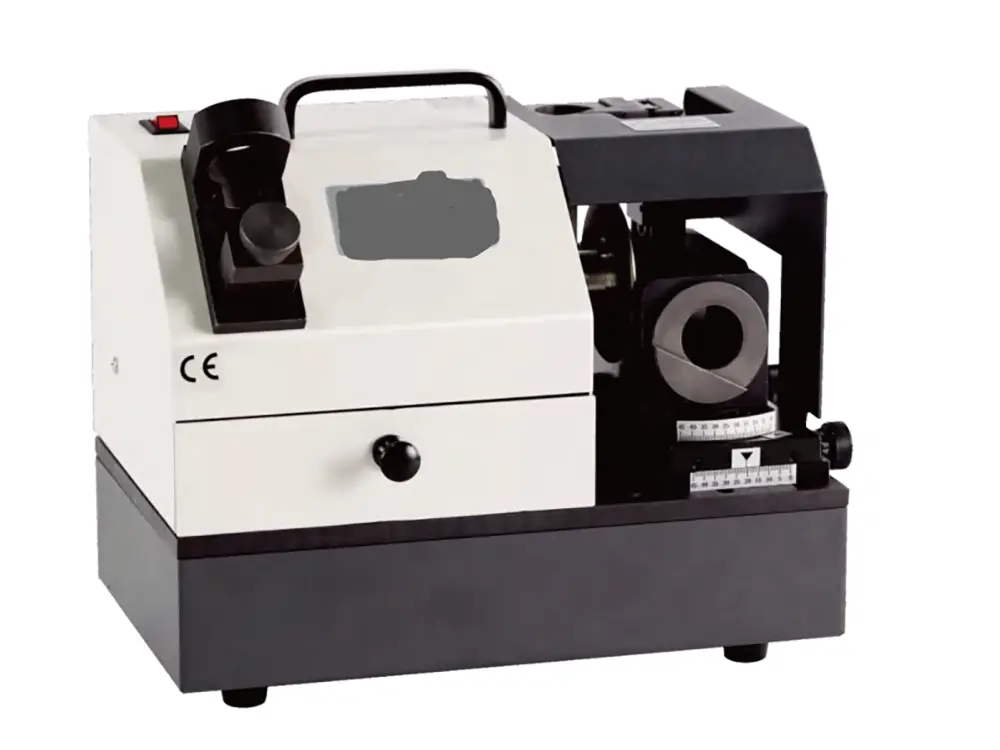

Product Description This machine features a compact, portable design, ideal for on-site or workshop use. It is capable of grinding 3-flute and 4-flute straight groove screw taps, with an optional function for 5-flute screw taps. The equipment can precisely grind the entire front cutting...
This machine features a compact, portable design, ideal for on-site or workshop use. It is capable of grinding 3-flute and 4-flute straight groove screw taps, with an optional function for 5-flute screw taps. The equipment can precisely grind the entire front cutting surface and front cutting edge of straight groove screw taps, ensuring consistent cutting performance and extended tap service life.
| Item | Y3/Y3C | Y5C |
| Grinding Diameter Range | M5-M20 | M16-M42 |
| Point Angle | 5°-30° | 5°-30° |
| Power Supply | 220V, 160W | 220V, 250W |
| Motor Speed | 4400 RPM | 4400 RPM |
| Standard Grinding Wheel | CBN (for HSS taps) or SDC (for carbide taps) | CBN (for HSS taps) or SDC (for carbide taps) |
| Package Dimension | 36×27×30.5 cm | 40×30×31 cm |
| Net Weight | 11/14 kg | 26.5 kg |
GD-600 Standard gun drill sharpening machine adopt precision rolling track, high-speed motor. The motion is smooth and the friction is small. Grinder can rotate in horizontal and vertical plane. Widely applicable to machine tools with sharpening Fixture canbe accurate and effective grinding a variety of gun drill.50Q Gun Drills Gun Drill Sharpening Fixture is specialized used in dedicated tooling the compact structure, of setup is reasonable and convenient, adjustment is simple, processing is time-saving(once setup to be completed by all angle grinding), the processing of drilling edge, high precision, good accuracy. Grinding range is φ 5-φ 32
This machine tool is a special-purpose machine tool for machining cylindrical deep-hole parts. It is suitable for boring cylindrical deep-hole workpieces. During boring, an oil feeder is used to supply oil, and the chips are discharged to the chip hopper at the head of the machine through the cutting zone. During drilling, an internal chip removal method (BTA) is used, that is, an oil feeder supplies oil, and the chips are discharged from the inside of the drill rod to the chip hopper at the rear of the machine through the cutting zone.
Threaded carbide rod with holes are mainly used for processing tungsten parts or as a tool bit of processing lathe, conductors, steel-making burdening and additives.
Comma face grooving cutters (also known as comma grooving cutters or face comma cutters) are spec...
• High quality Sandvick insert and pad • Dia 25mm—65mm,first choose of high efficiency. • Excellent straightness and surface finish.It can maintain good chip removal performance • during the processing of stainless steel and low carbon steel,to keep continuous production. • Easy to install and to use
Features： 1.Use high-quality tungsten carbide as raw material. 2.Adopt the world advanced preparation technology. 3.Various types can be produced, with German import automatic extrusion equipment.
AG Solid Carbide End Mills(Drillstar brand) are designed to perform in the most demanding environments. Whether you’re looking for an end mill for aluminum, titanium, stainless steel, or different materials, our end mills will provide you with the ultimate MRR and durability. AG Solid Carbide End Mills run longer, cut faster, and machine with greater precision. Solid Carbide End Mills are designed to perform in the most demanding environments. Whether you’re looking for an end mill for aluminum, titanium, stainless steel,etc.
Core Definition and Structure Grooving inserts are preformed replaceable cutting unit...
Carbide Plum Blossom Teeth are a specialized type of tungsten carbide cutting tool characterized by their unique, multi-pointed star shape that resembles a plum blossom. These teeth are designed as highly efficient, multi-faceted cutting elements for extreme abrasive and impact conditions, primarily in the mining and construction industries.
Four Axis CNC Deep Hole Gun Drilling Machine is used for processing automobiles, motorcycles, oil pump, nozzle, engineering machinery, mining machinery, military industry and other industries, small and medium-sized deep hole axial workpiece of special equipment.
HMS25 HMS35 HMS50 Deep Hole Honing Machine is specially used for finishing the inner hole surface of various hydraulic cylinders, cylinders and other cylindrical parts. After machining, the aperture accuracy of the parts reaches above it7, and the surface roughness reaches ra0.2-0.4 μ m。 The machine tool can also carry out local honing to correct the taper and ovality of parts.
The cemented carbide gun drill bit for the geology and mining field is the core component of the gun drill tool. It is made of high-strength and high-wear-resistant cemented carbide material. Suitable for deep hole drilling operations in geological and mining exploration, it can perform efficient drilling in hard geological bodies such as rocks and ores. It features high drilling precision, smooth chip removal and long service life, and is compatible with various geological drilling rigs.
Cemented carbide mushroom-shaped ball tooth is named for its mushroom-like shape. It is an efficient crushing tool component made of cemented carbide material. The head is round and thick, with excellent impact resistance and wear resistance. It is mainly used in crushers, impact drills, roadheaders and other equipment. Suitable for crushing hard materials such as rocks, ores and concrete, it has high crushing efficiency and long service life.
Star-shaped Grooving Cutters (also referred to as Penta Grooving Tools) are cost-effective indexable tools for CNC grooving and parting operations. They are named for their pentagram-shaped insert structure with 5 cutting edges, and are primarily suitable for machining shallow grooves, wide grooves, parting cuts, and shoulder grooves—especially ideal for small part and batch production scenarios.
Model: Customizable (e.g., DHF-XX Series) Brand: DRILLSTAR Origin: China
Single axis CNC Deep Hole Gun Drilling Machine is used for processing automobiles, motorcycles, oil pump, nozzle, engineering machinery, mining machinery, military industry and other industries, small and medium-sized deep hole axial workpiece of special equipment.
